Road Signs Library

Every regulatory, warning and informational sign — with what each one means and what you must do.

How to study signs so they stick on test day

Most theory-test mistakes are not about obscure rules. They are about mixing up two signs that look similar when you are tired. A red circle with a slash is a prohibition. A blue circle is a mandatory instruction. A red inverted triangle means give way. If you only remember those three families, you already avoid a large share of wrong answers.

Singapore learners sitting BTT should treat signs as actions, not names. When you see a school-zone sign, the exam is asking whether you slow to 40 km/h on school days, not whether you can spell the sign. Japan written tests do the same: 止まれ means a complete stop at the line, not a rolling pause.

Use this library with lesson mode. Look at the picture first, say the action out loud in your own language, then answer the practice question. Myanmar workers who study this way usually remember the rule in the test room even if the English wording feels unfamiliar.

TheoryLane drawings are original study illustrations. They are not copied from official exam papers. Always confirm the latest rules with Singapore Traffic Police or Japan’s National Police Agency before you book.

🇸🇬

Singapore Signs

Regulatory — Must Obey

Stop
Stop
Come to a complete stop. Give way to all traffic before moving.

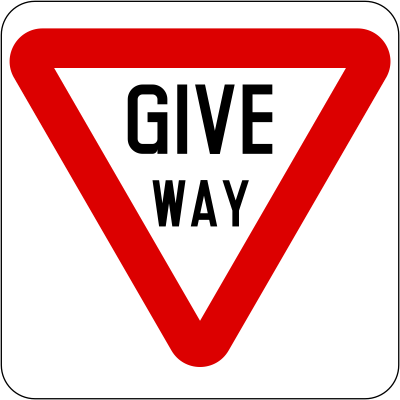

Give Way
Give Way
Slow down and give way to traffic on the main road.
No Entry
No Entry
Do not enter this road or area.

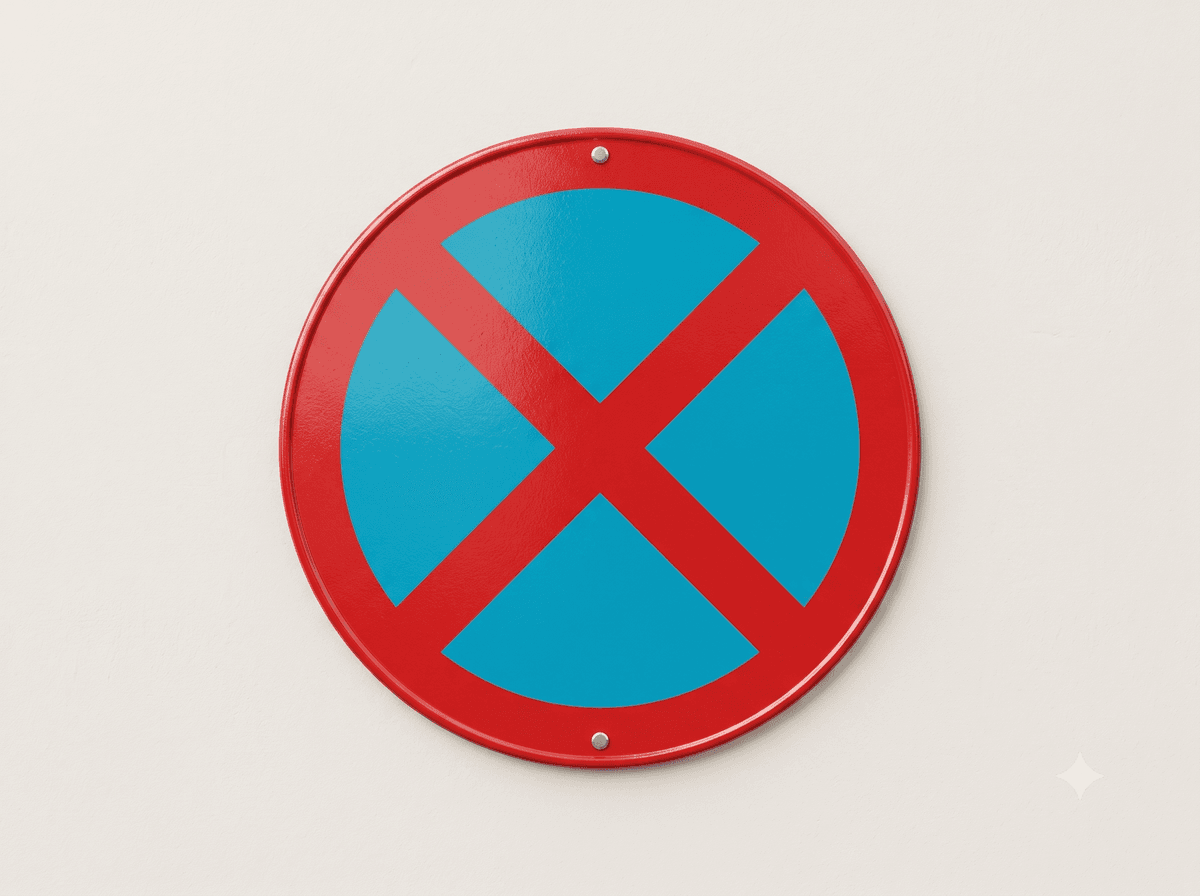

No Stopping
No Stopping
Do not stop your vehicle here, even briefly.
No Waiting
No Waiting
Do not wait or park here beyond the allowed time.
No Overtaking
No Overtaking
Do not overtake other vehicles on this stretch.
Speed Limit 40
Speed Limit 40
Maximum speed is 40 km/h.

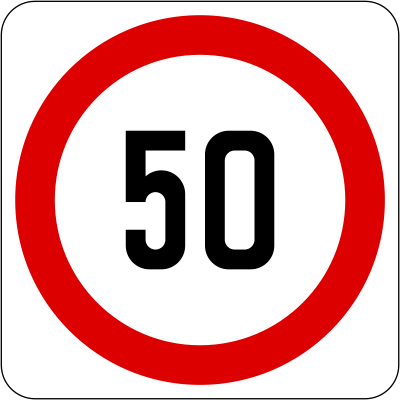

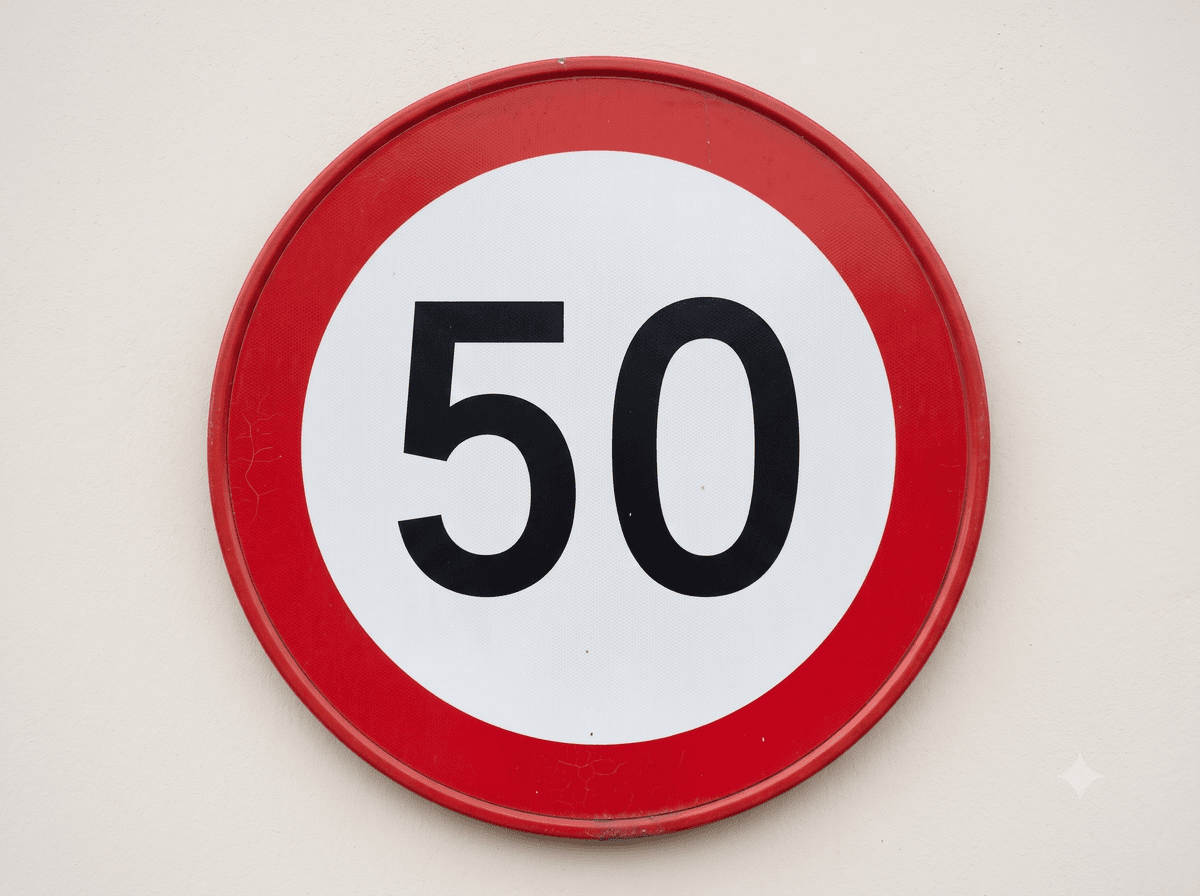

Speed Limit 50
Speed Limit 50
Maximum speed is 50 km/h.

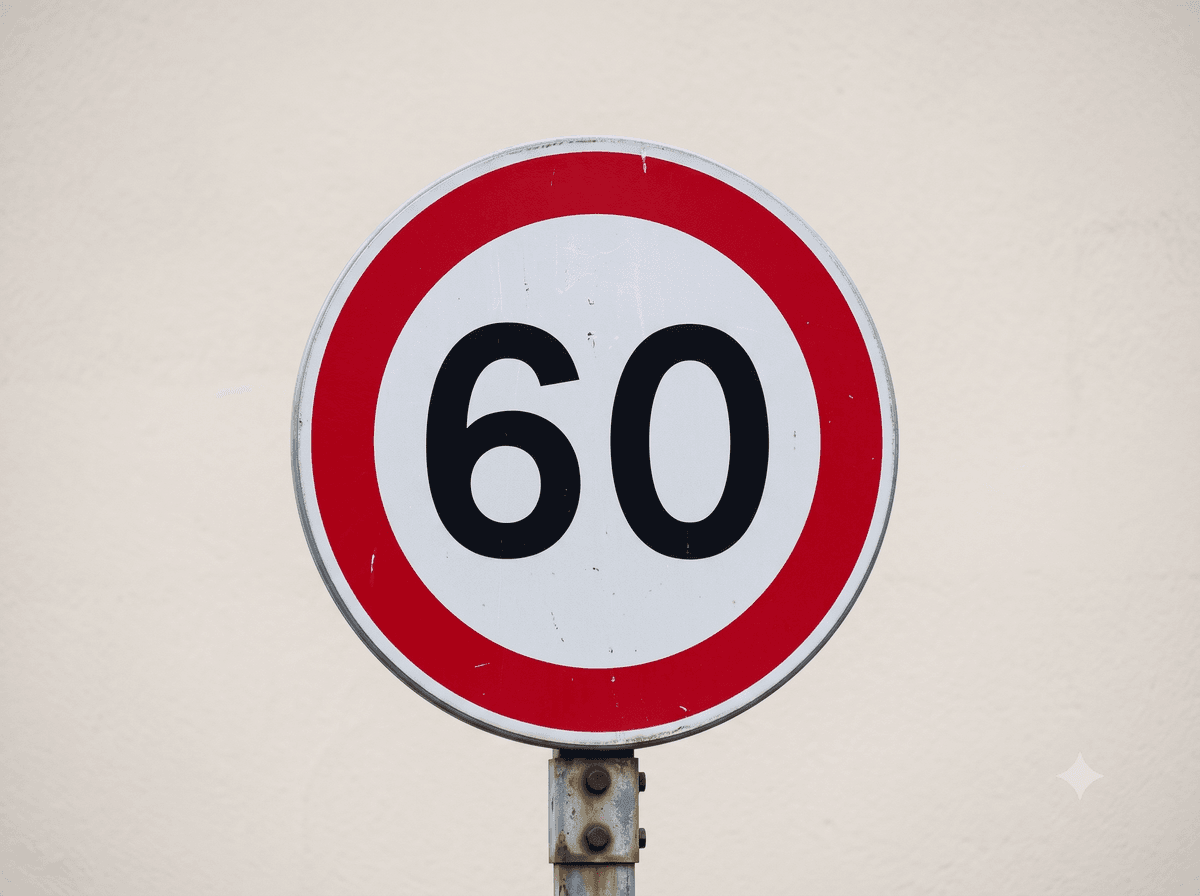

Speed Limit 60
Speed Limit 60
Maximum speed is 60 km/h.

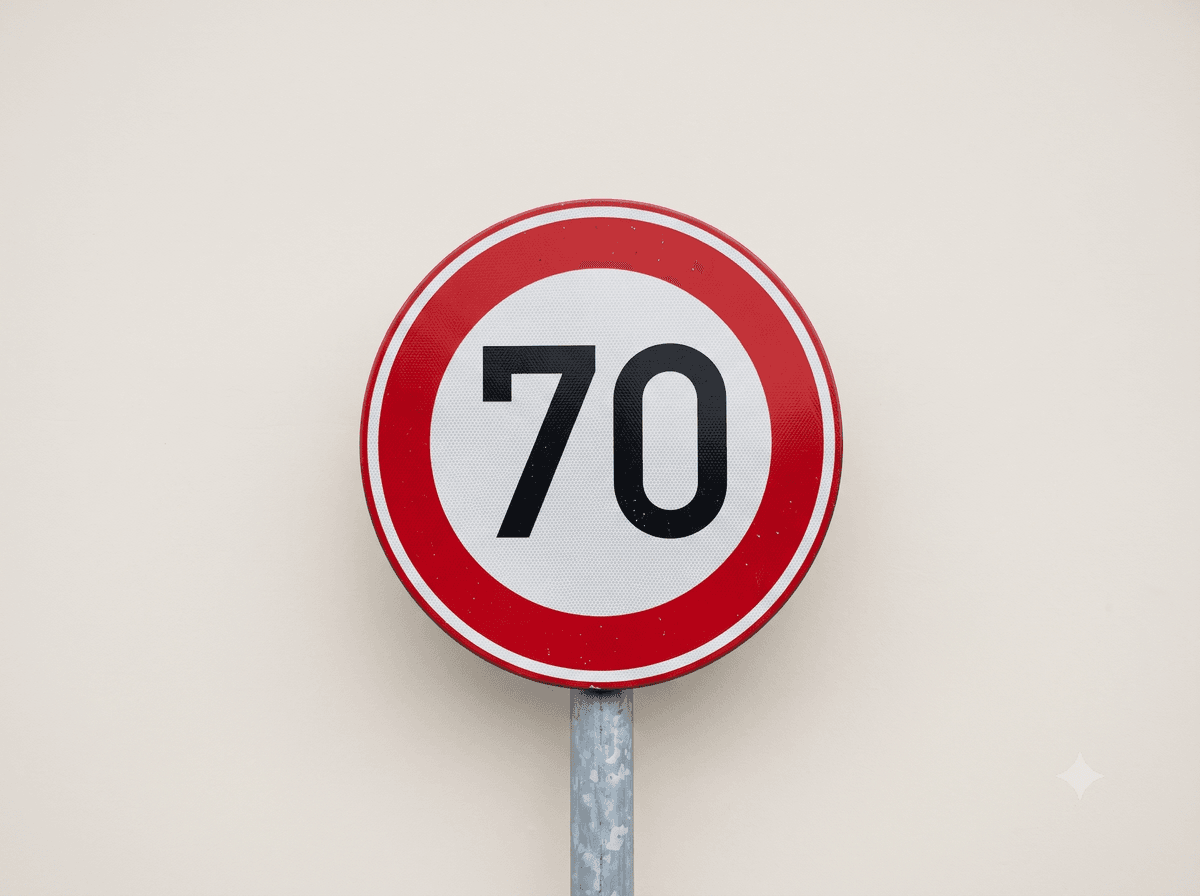

Speed Limit 70
Speed Limit 70
Maximum speed is 70 km/h.
Speed Limit 80
Speed Limit 80
Maximum speed is 80 km/h.

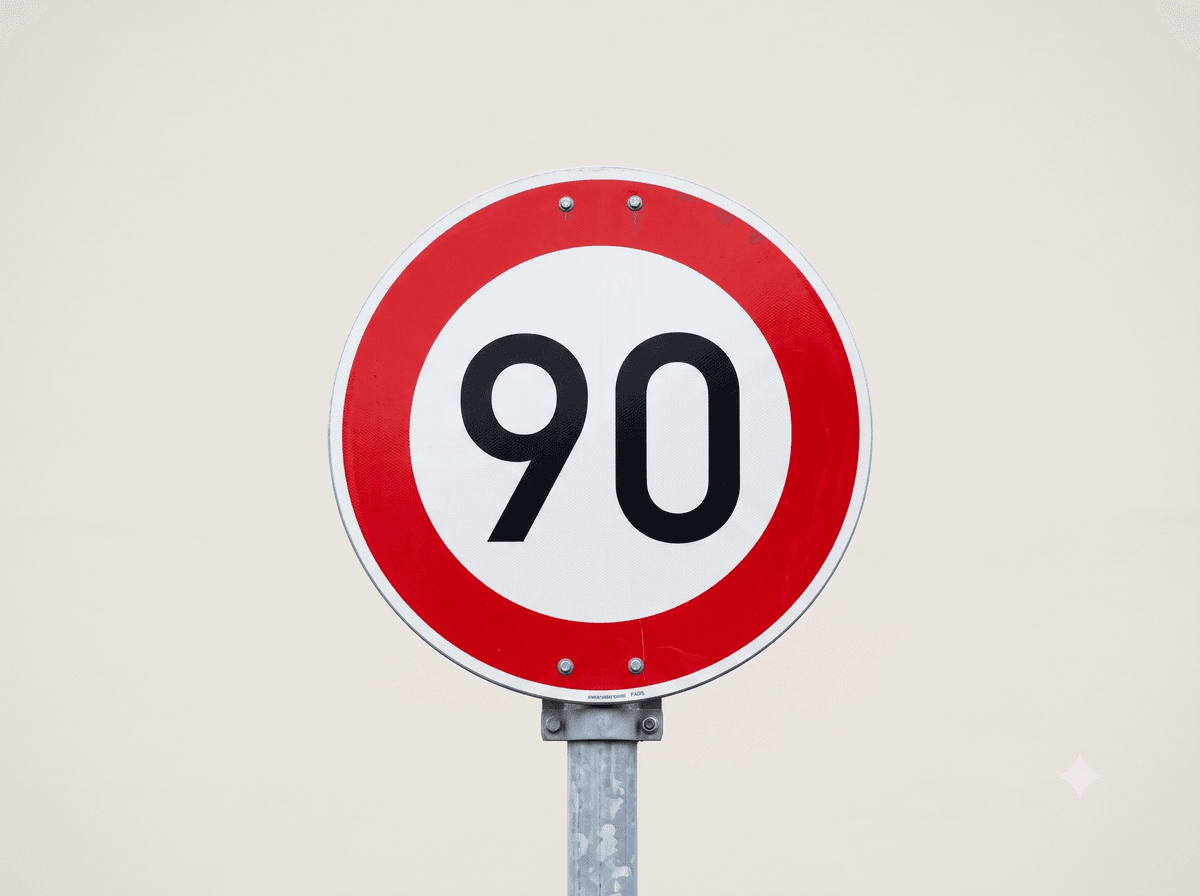

Speed Limit 90
Speed Limit 90
Maximum speed is 90 km/h.

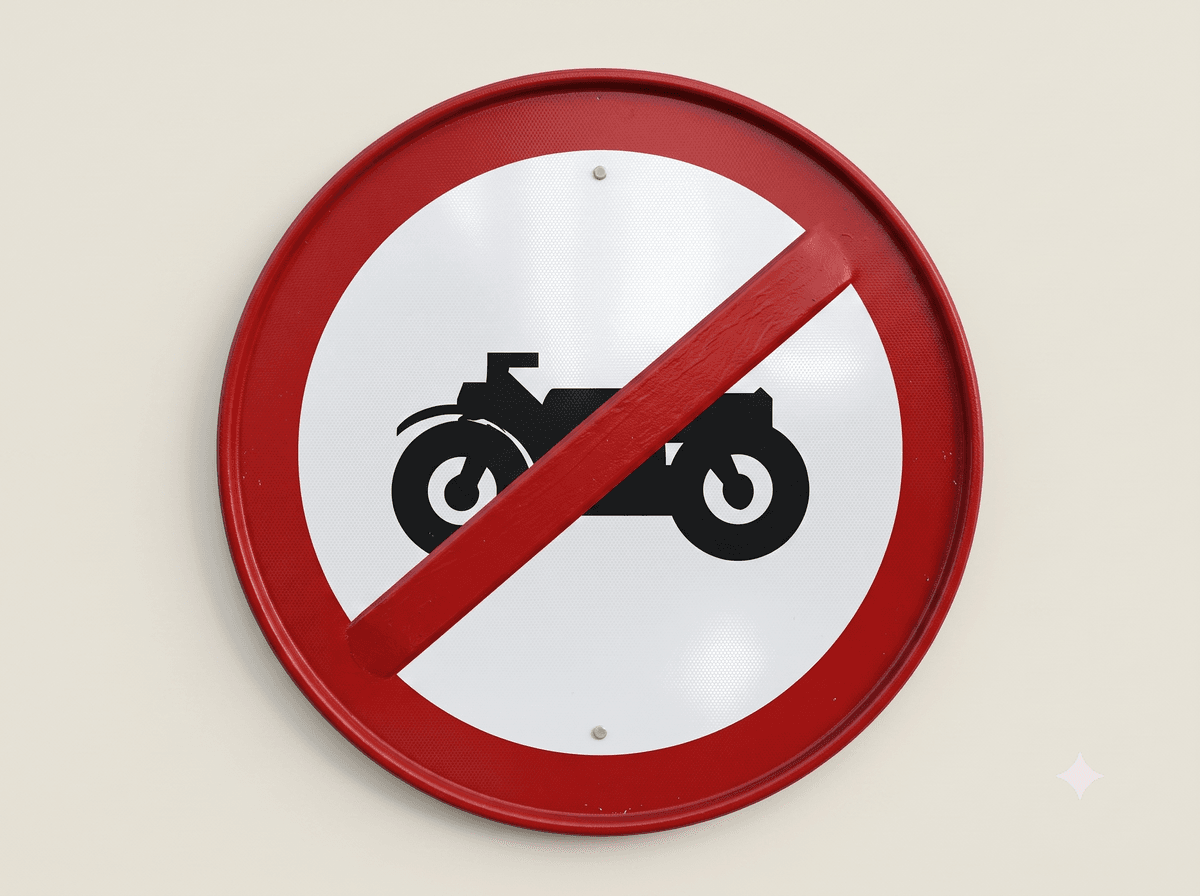

No Entry for Motorcycles
No Entry for Motorcycles
Motorcycles must not enter.

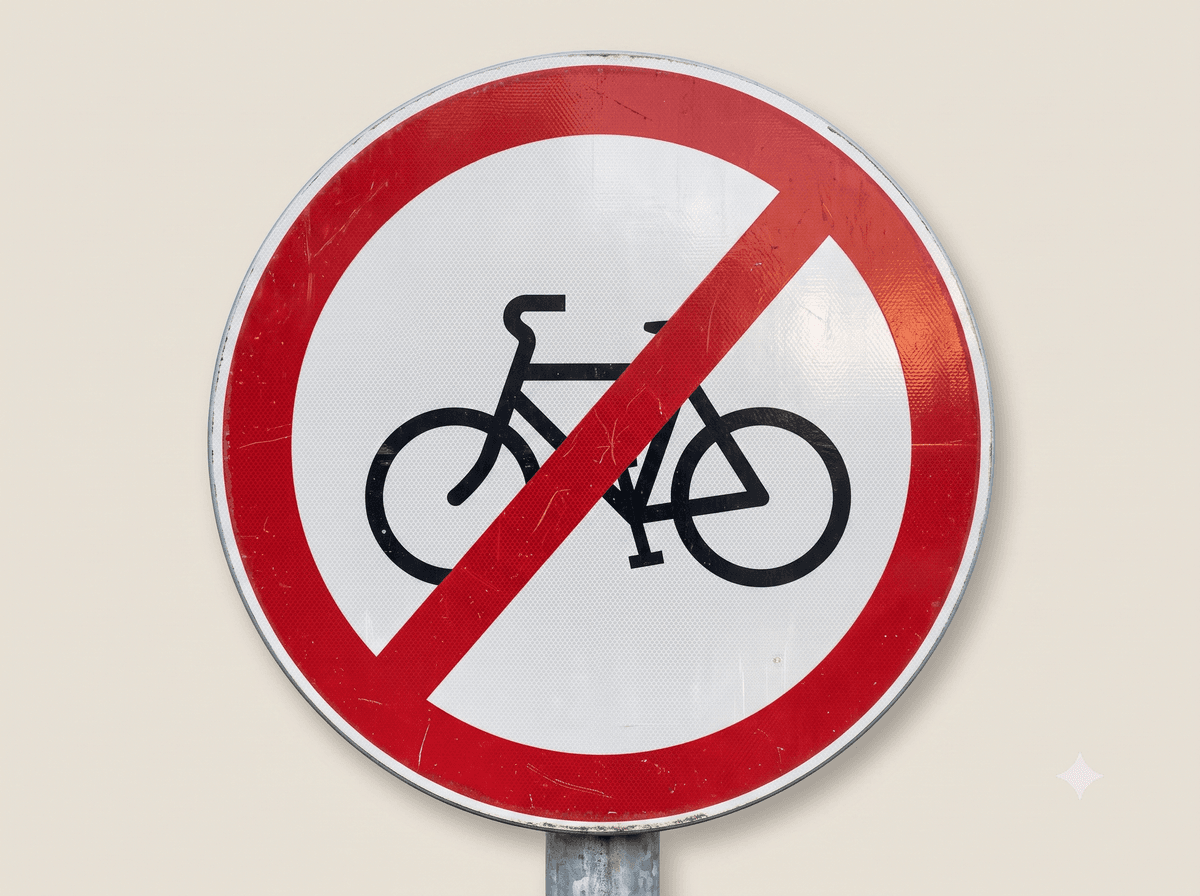

No Entry for Bicycles
No Entry for Bicycles
Bicycles must not enter.
No Entry for Pedestrians
No Entry for Pedestrians
Pedestrians must not enter.

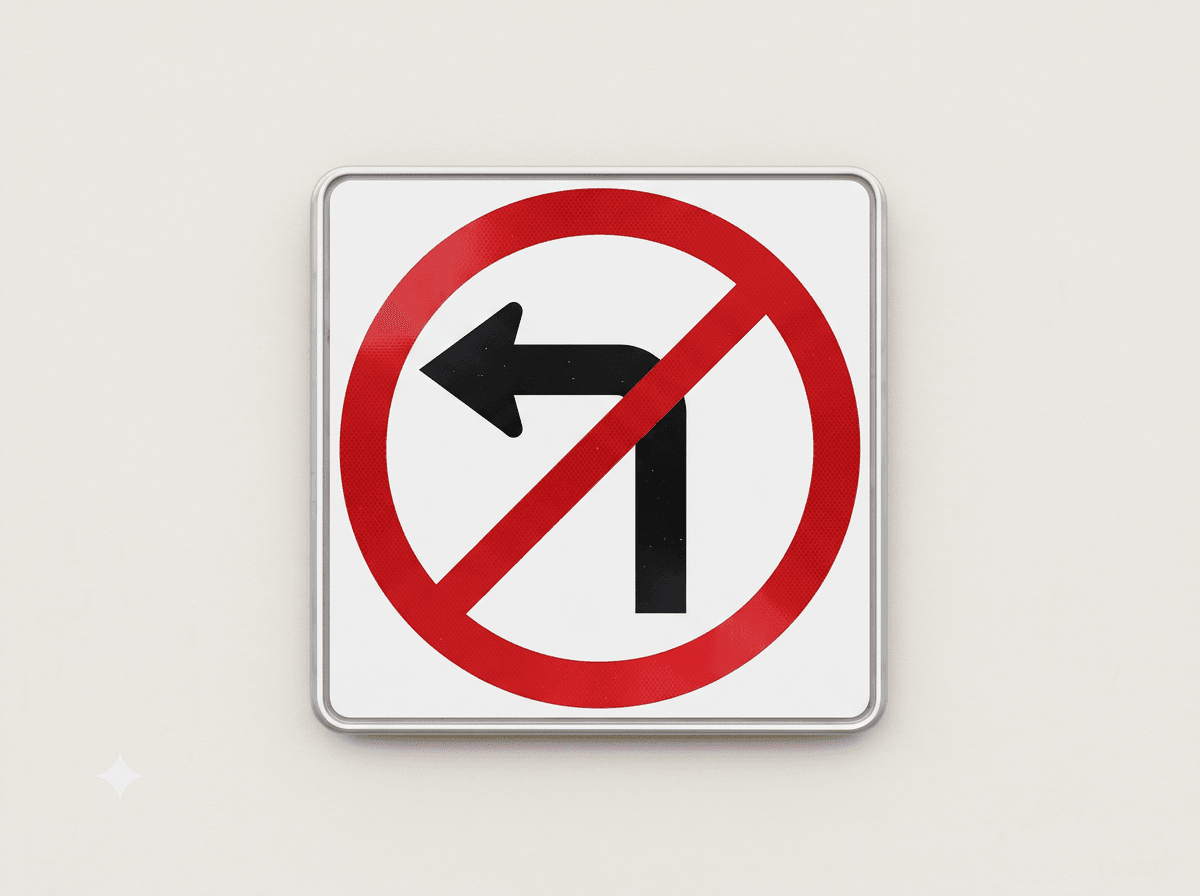

No Left Turn
No Left Turn
Left turns are not allowed.

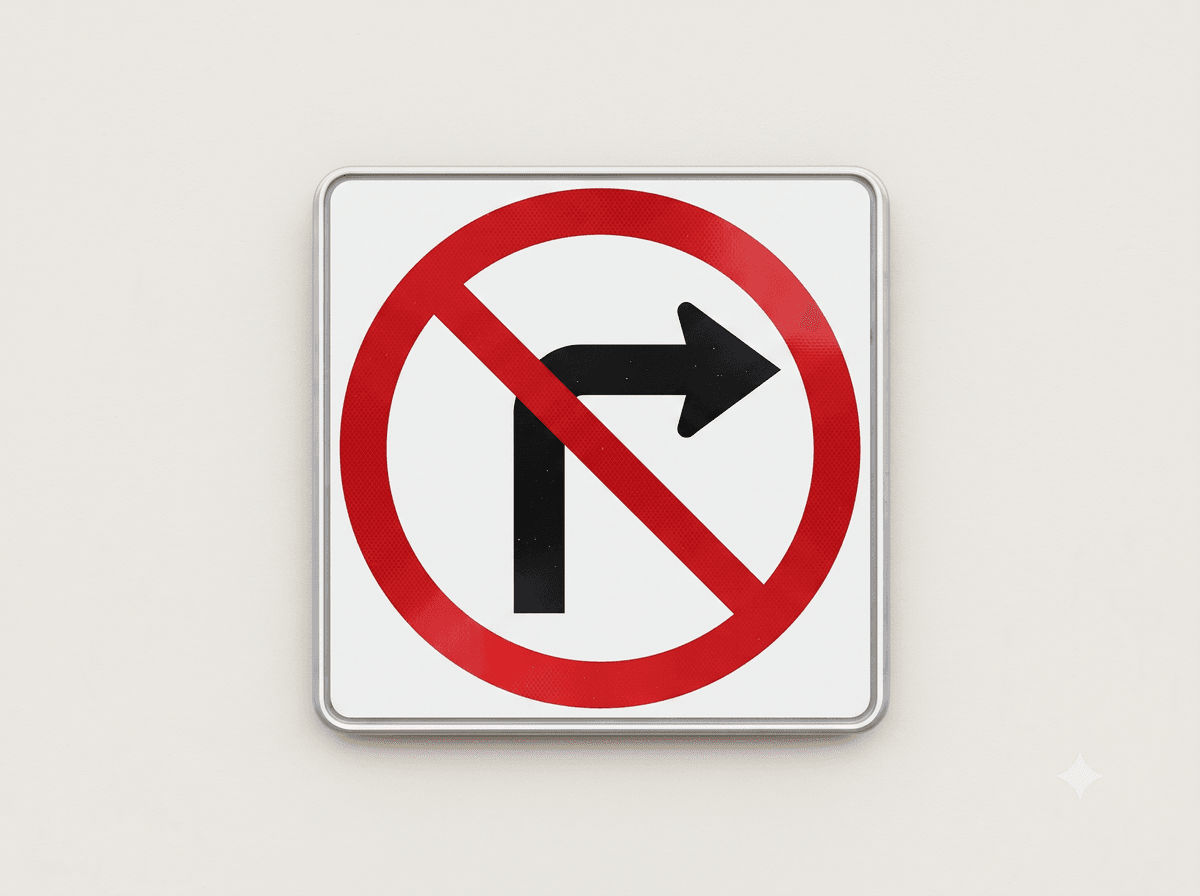

No Right Turn
No Right Turn
Right turns are not allowed.

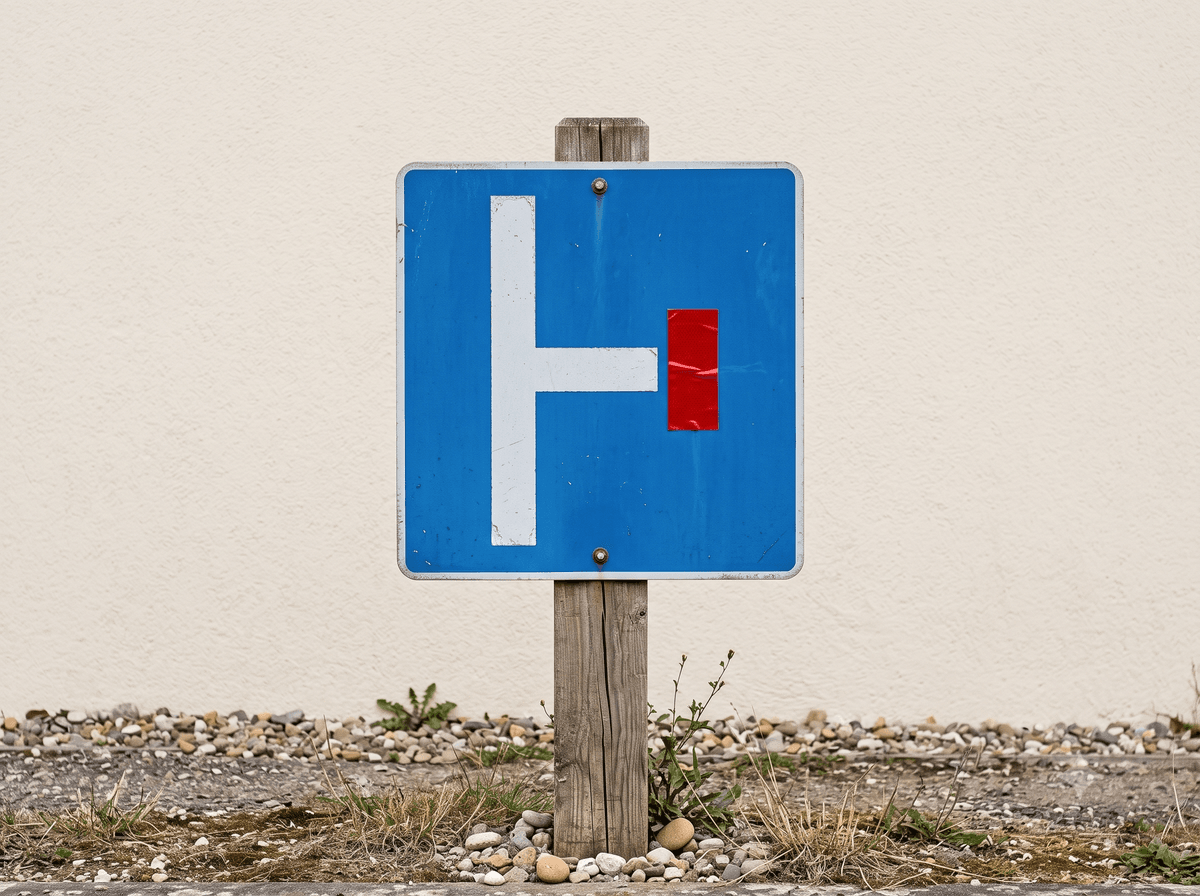

No Through Road
No Through Road
Road ends ahead; no through route.

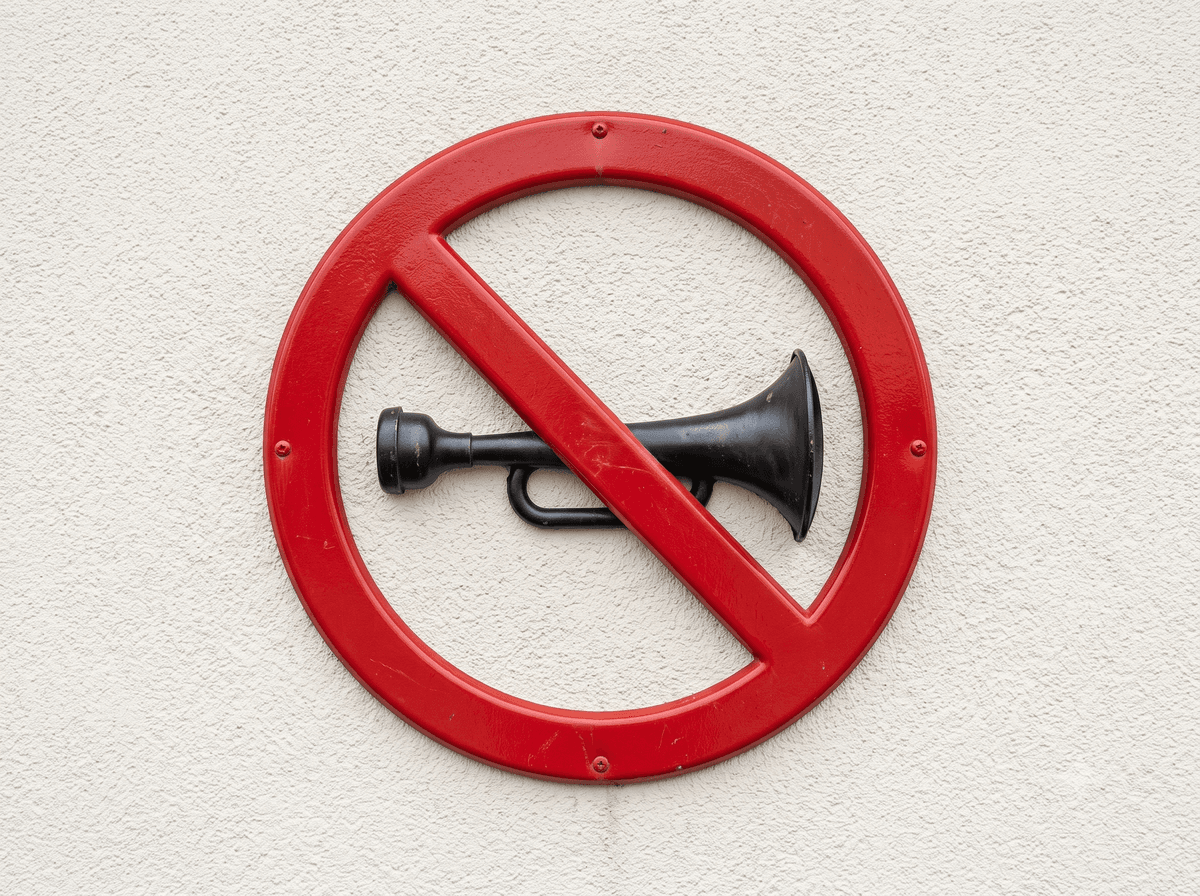

No Horn
No Horn
Do not sound your horn in this area.

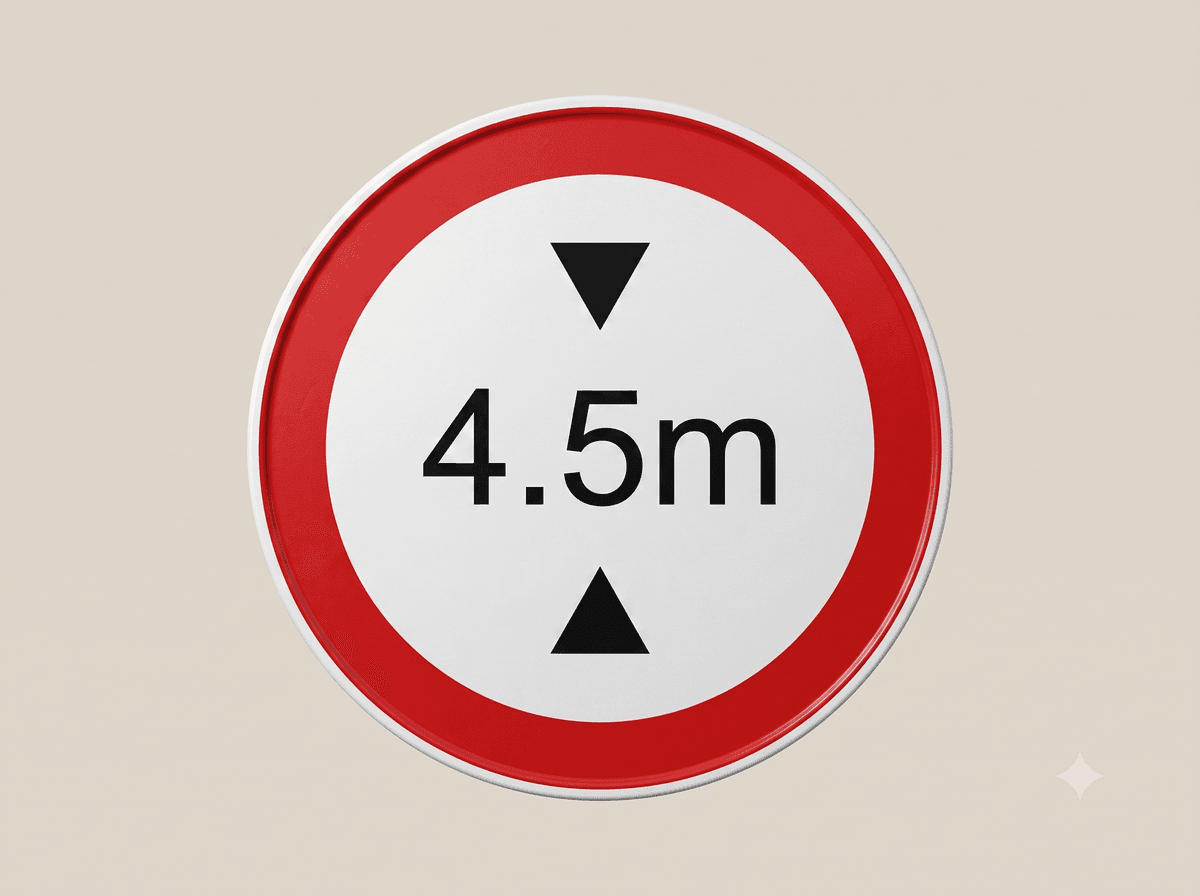

Height Limit
Height Limit
Vehicles taller than the limit must not pass.

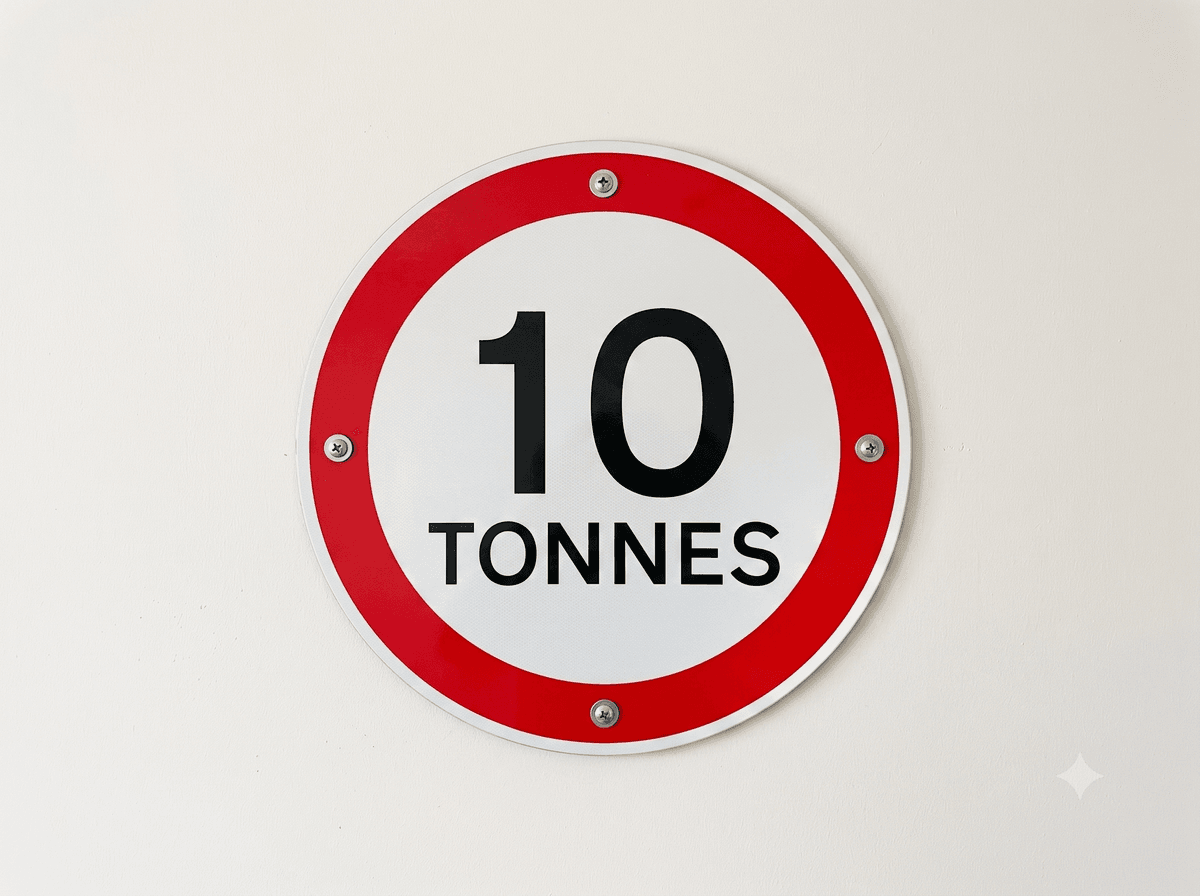

Weight Limit
Weight Limit
Vehicles heavier than the limit must not use this route.

Mandatory Direction

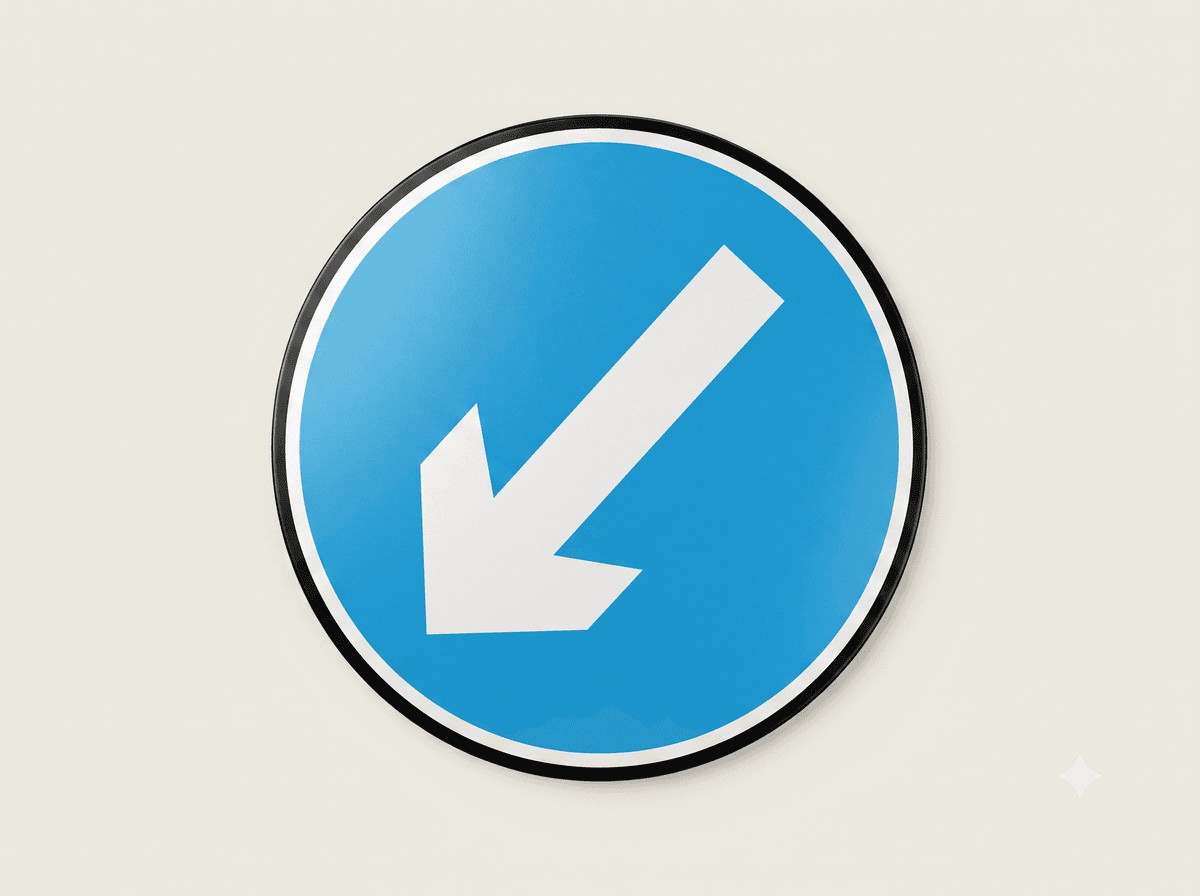

Keep Left
Keep Left
Keep to the left side of the road or divider.

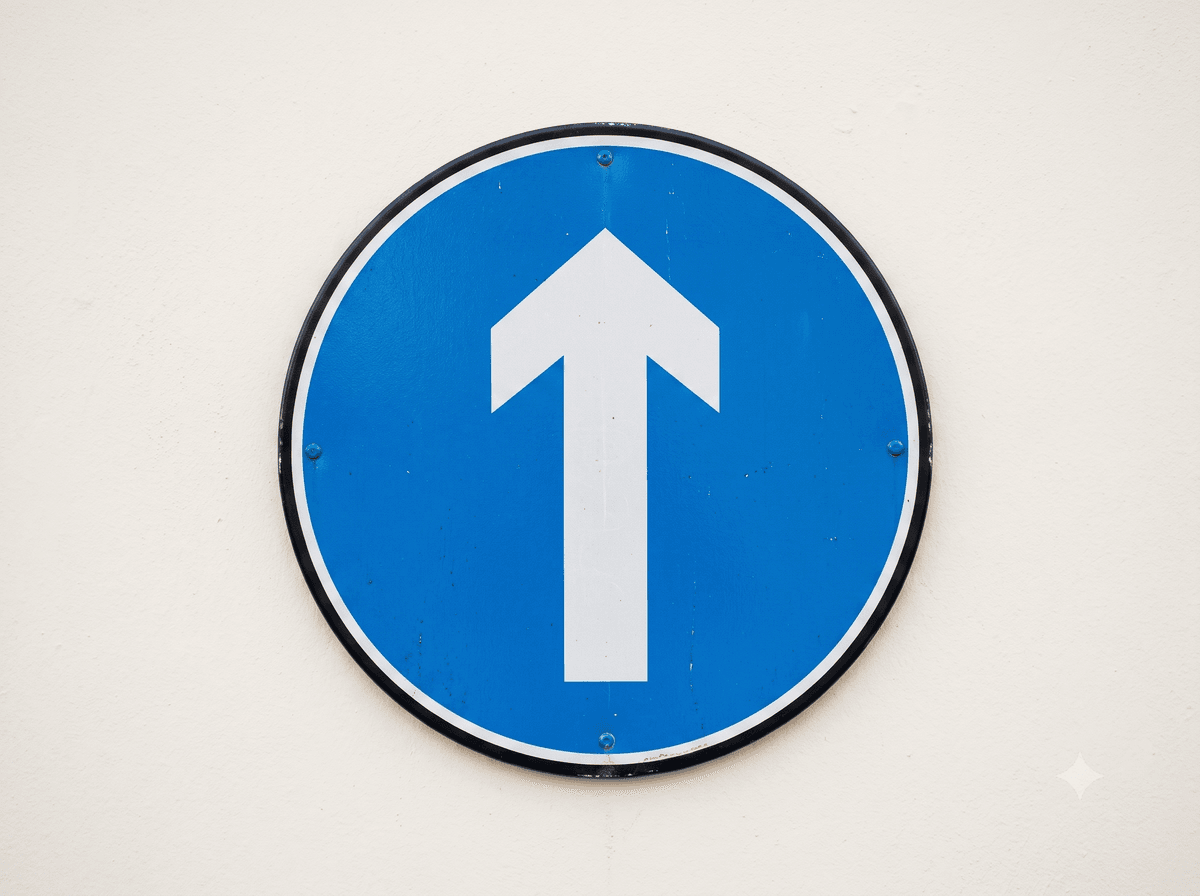

Ahead Only
Ahead Only
You must proceed straight ahead only.

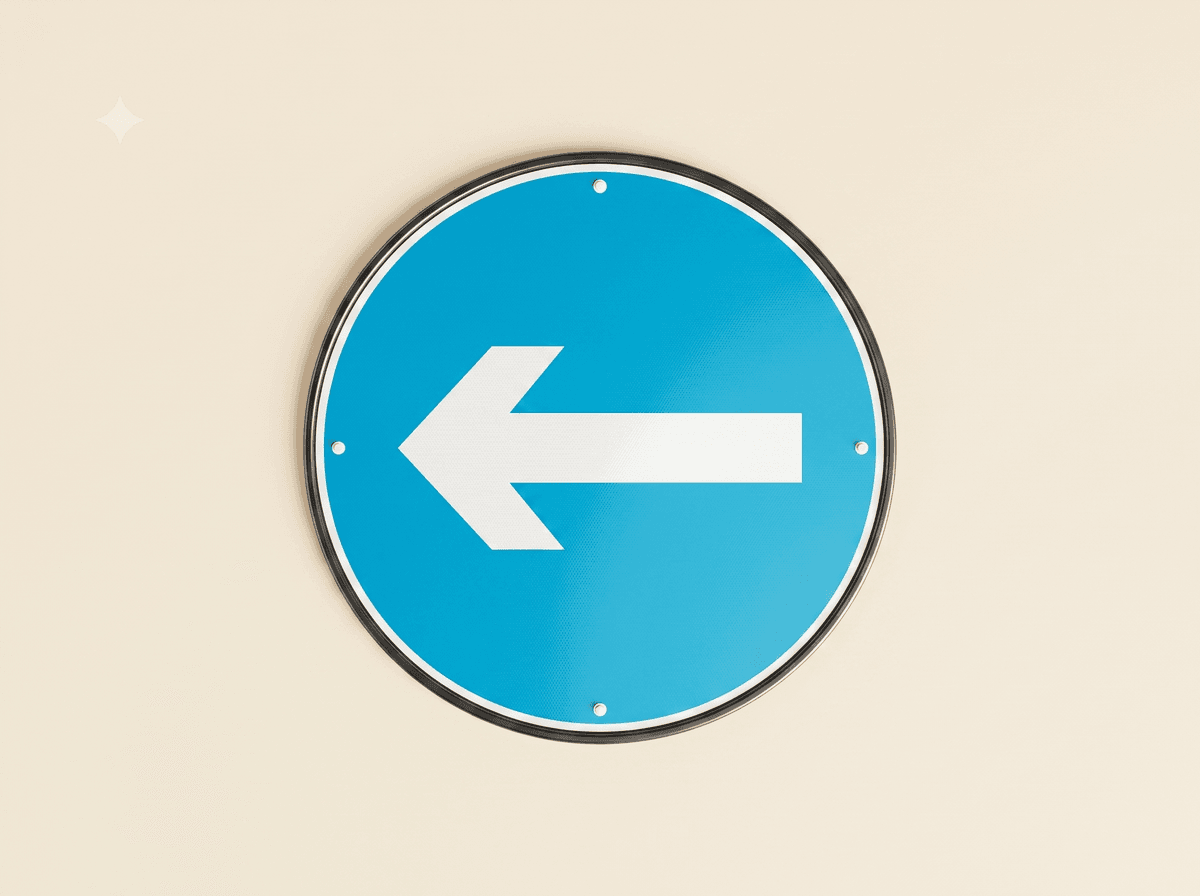

Turn Left Only
Turn Left Only
You must turn left at this junction.

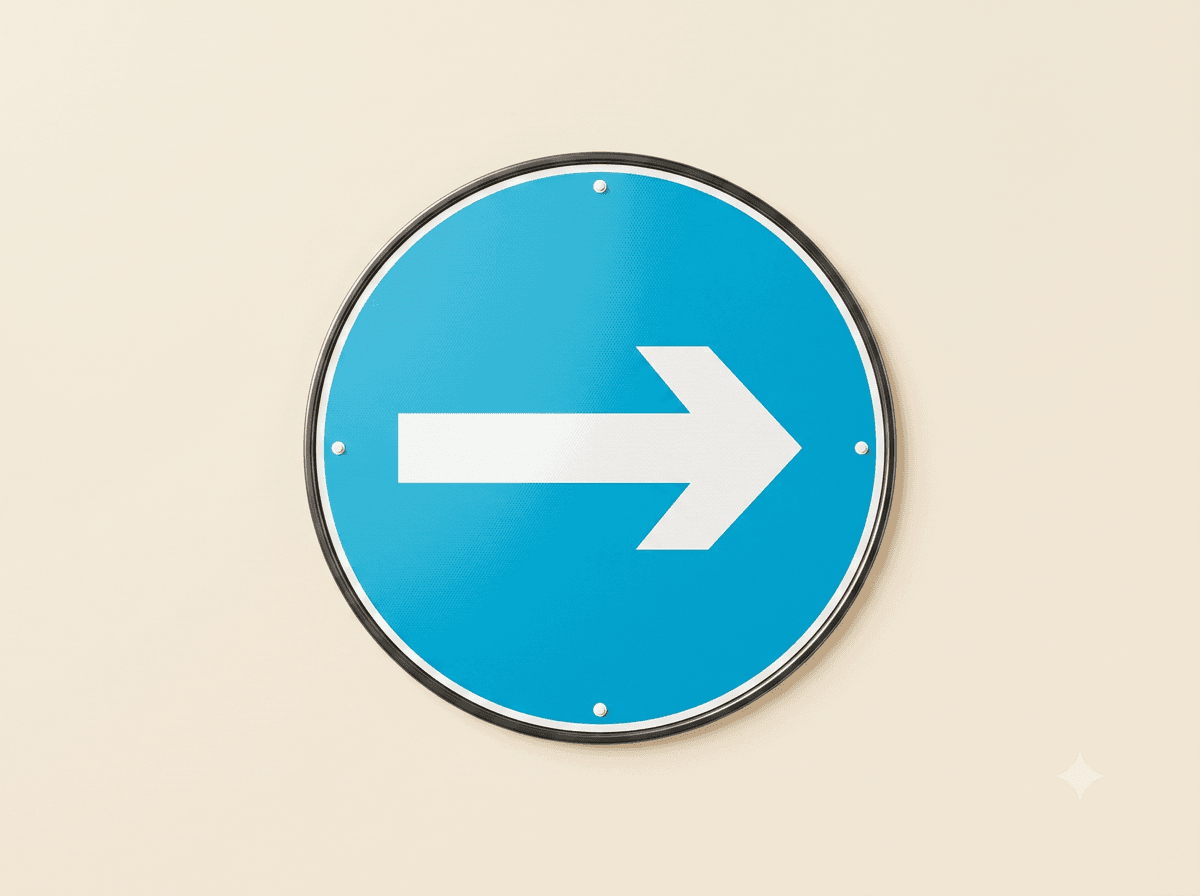

Turn Right Only
Turn Right Only
You must turn right at this junction.

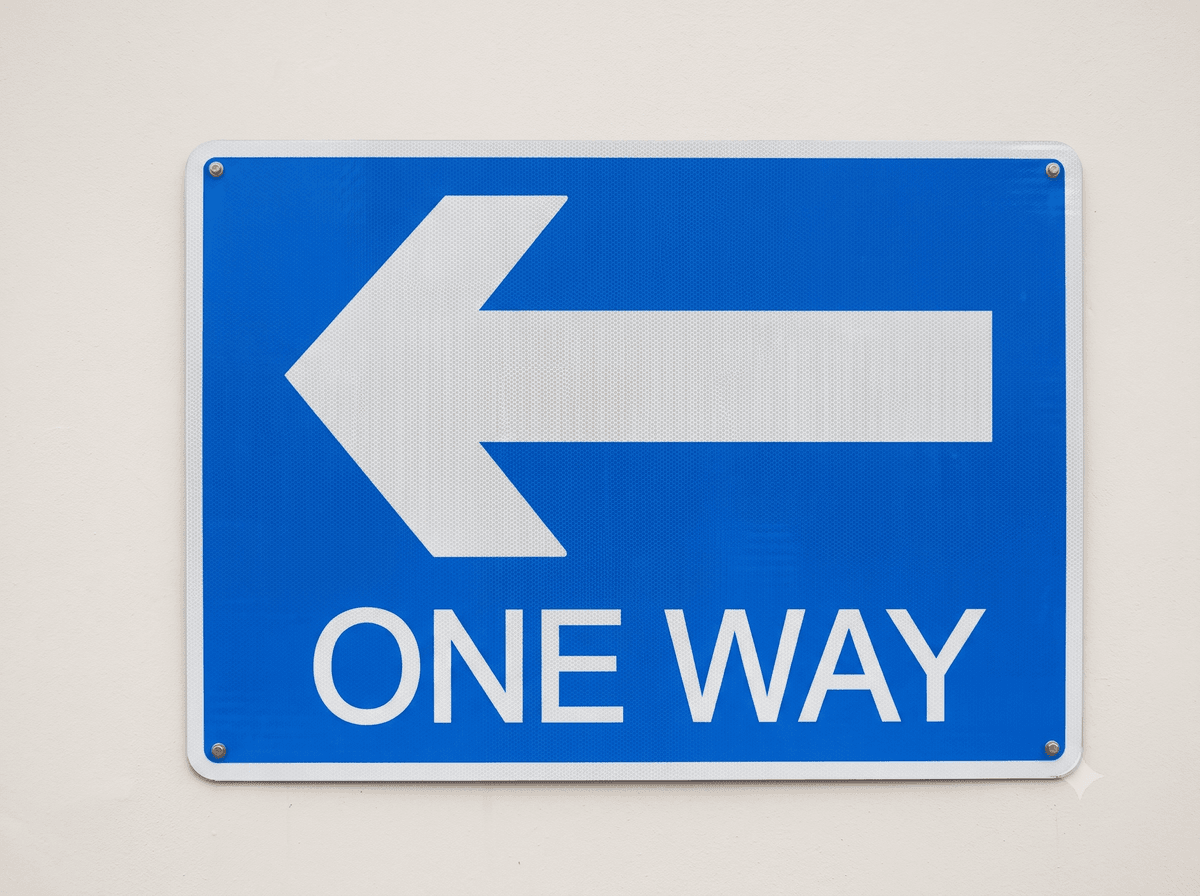

One-Way Street
One-Way Street
Traffic flows in one direction only.

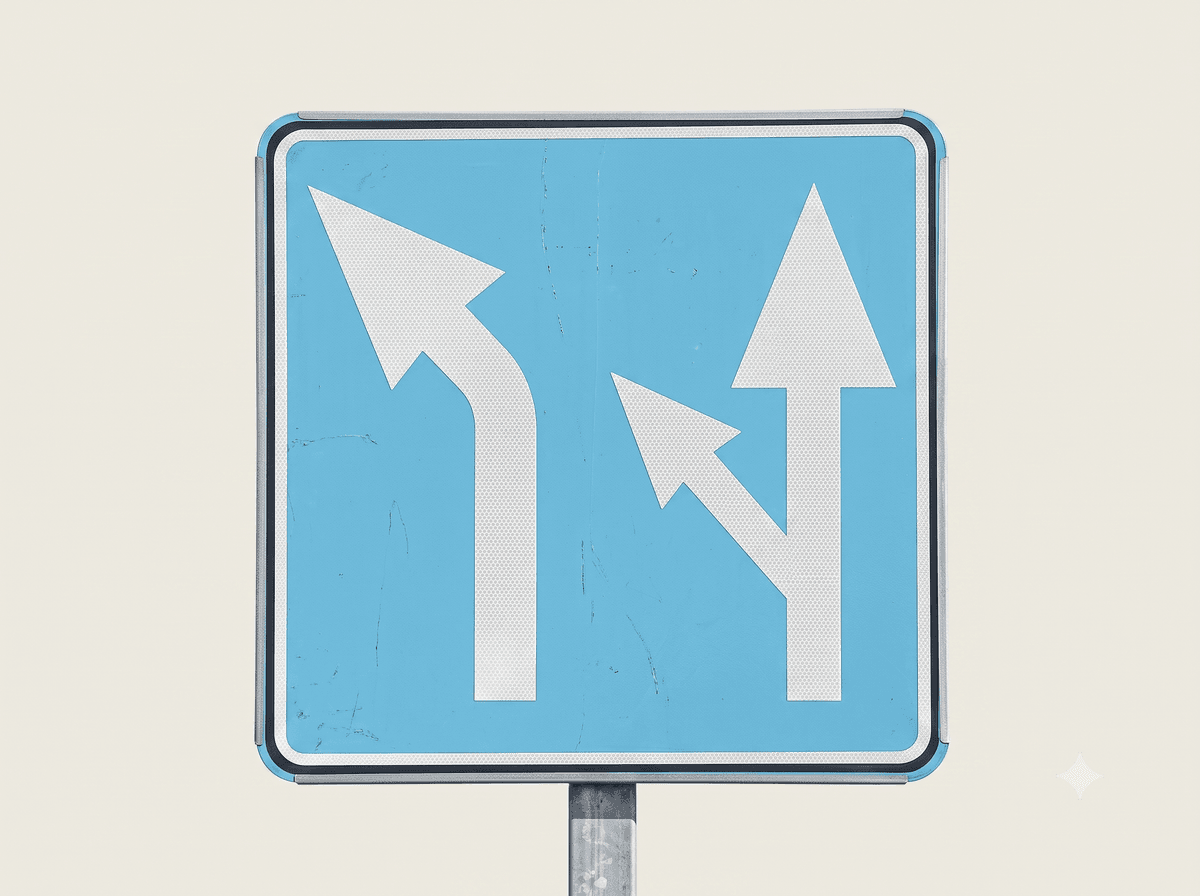

Exclusive Left Turn Lane
Exclusive Left Turn Lane
Use this lane only to turn left.

Warning — Hazard Ahead

Left Bend Ahead
Left Bend Ahead
Sharp bend to the left ahead; reduce speed.

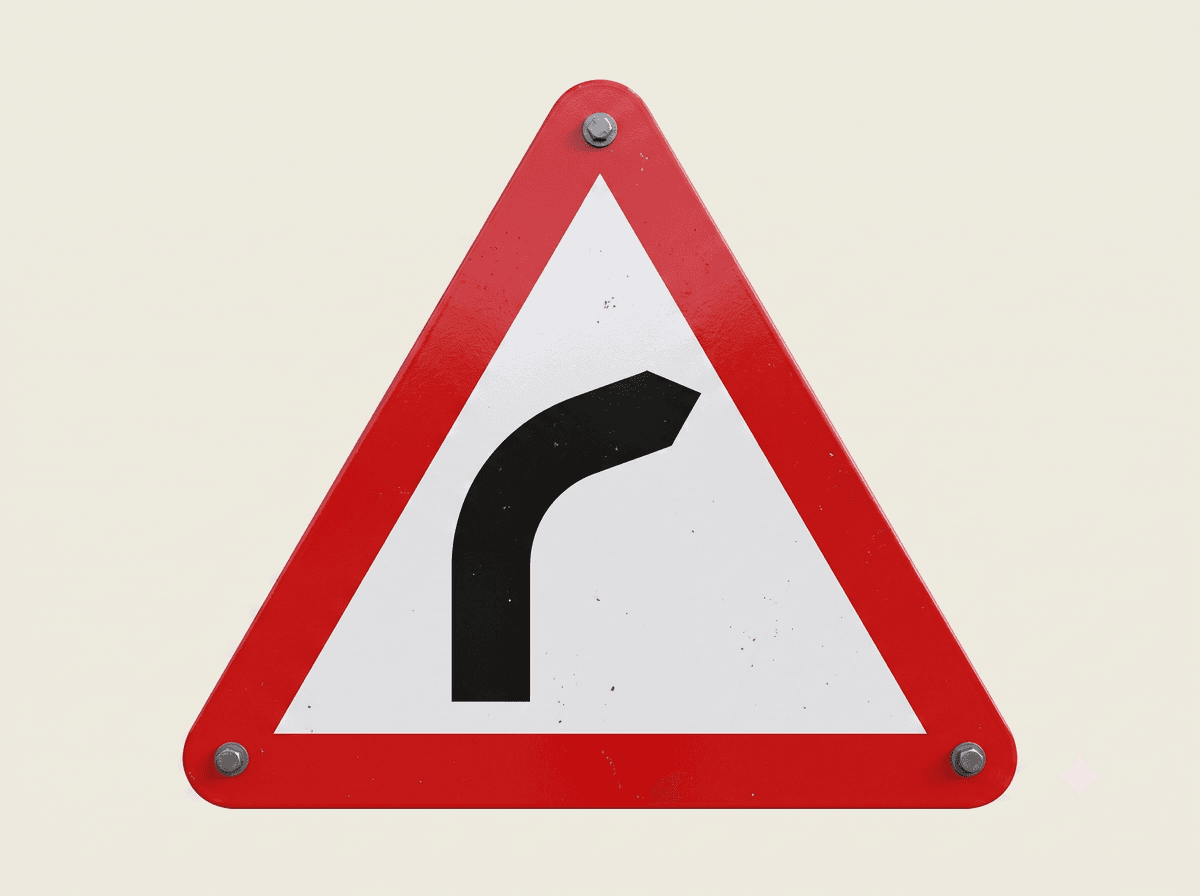

Right Bend Ahead
Right Bend Ahead
Sharp bend to the right ahead; reduce speed.

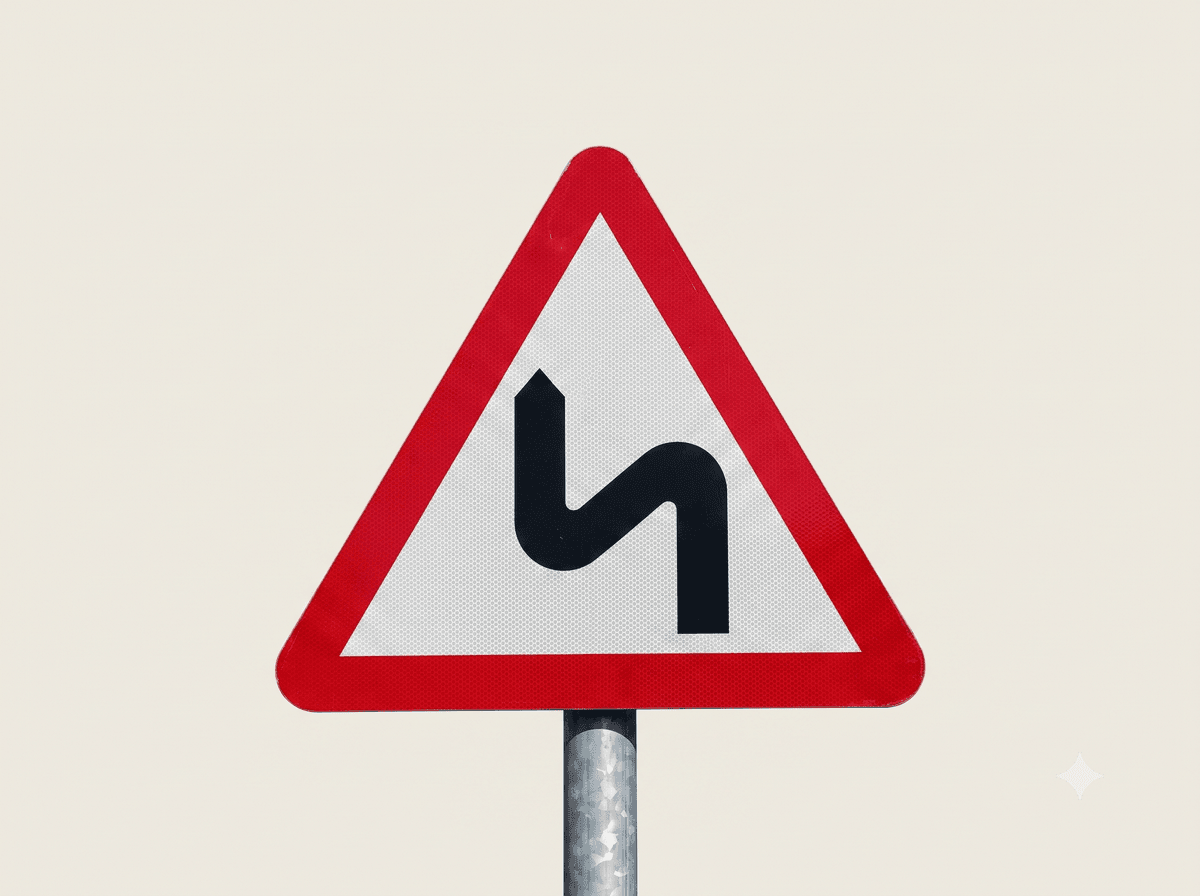

Series of Bends
Series of Bends
Multiple bends ahead; drive carefully.
Slippery Road
Slippery Road
Road may be slippery; slow down and avoid sudden braking.

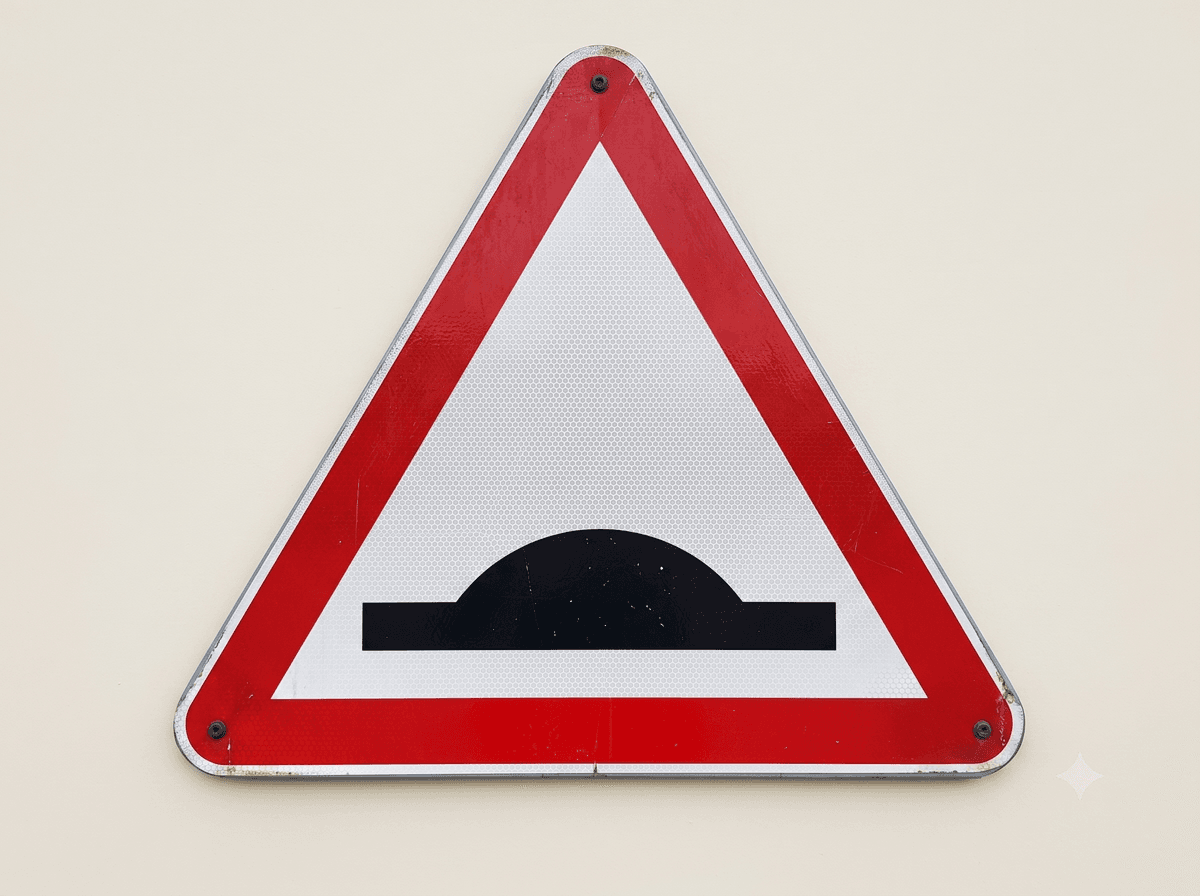

Road Hump Ahead
Road Hump Ahead
Speed bump ahead; slow down.
Steep Upward Slope
Steep Upward Slope
Steep uphill ahead; use lower gear if needed.

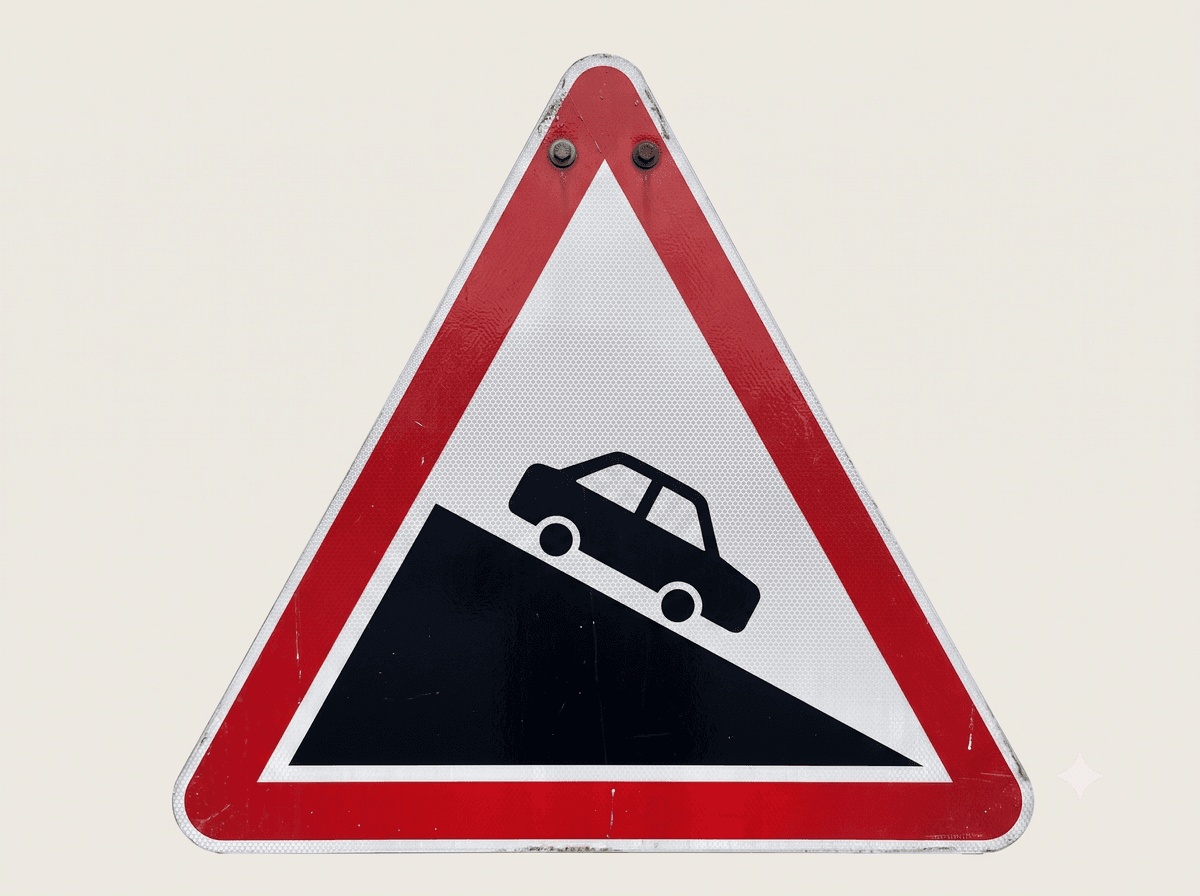

Steep Downward Slope
Steep Downward Slope
Steep downhill ahead; control speed with engine braking.

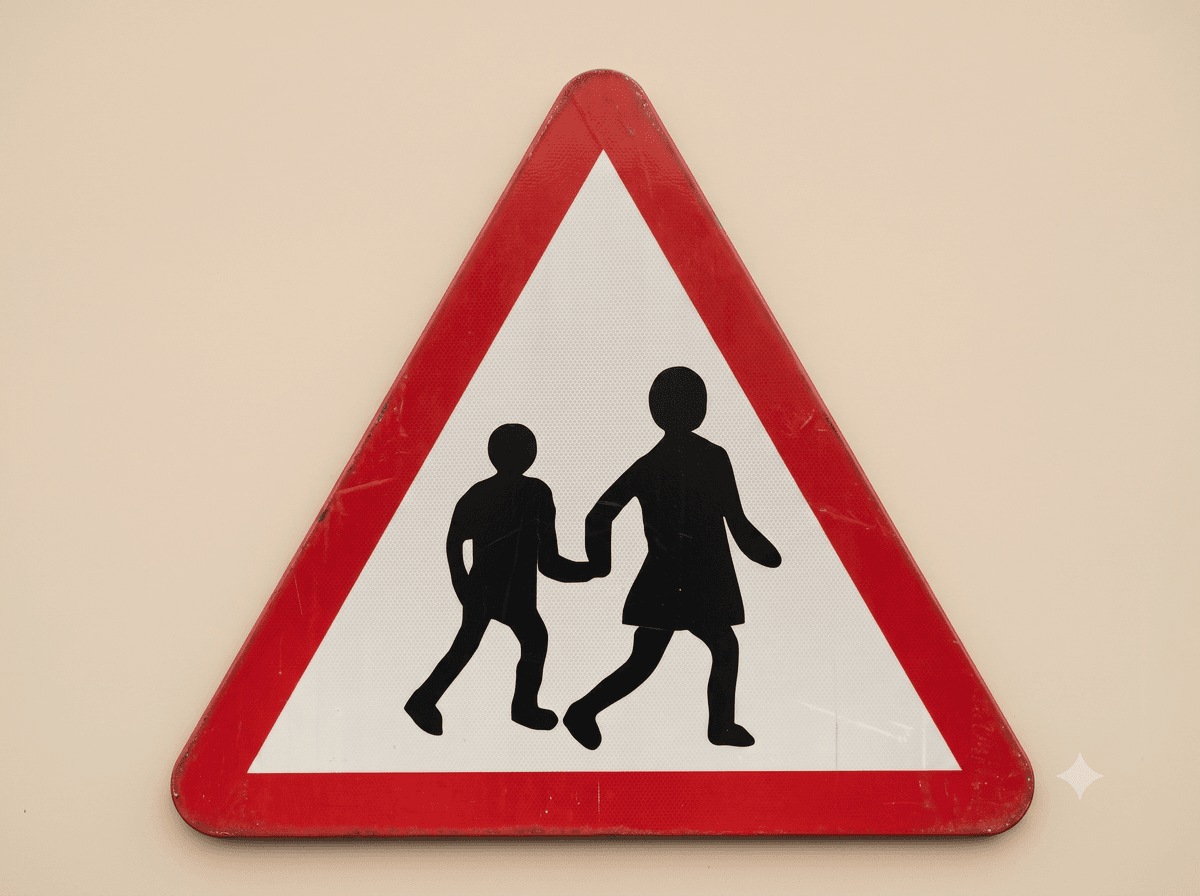

Children Ahead
Children Ahead
Children may be on or near the road; drive slowly.

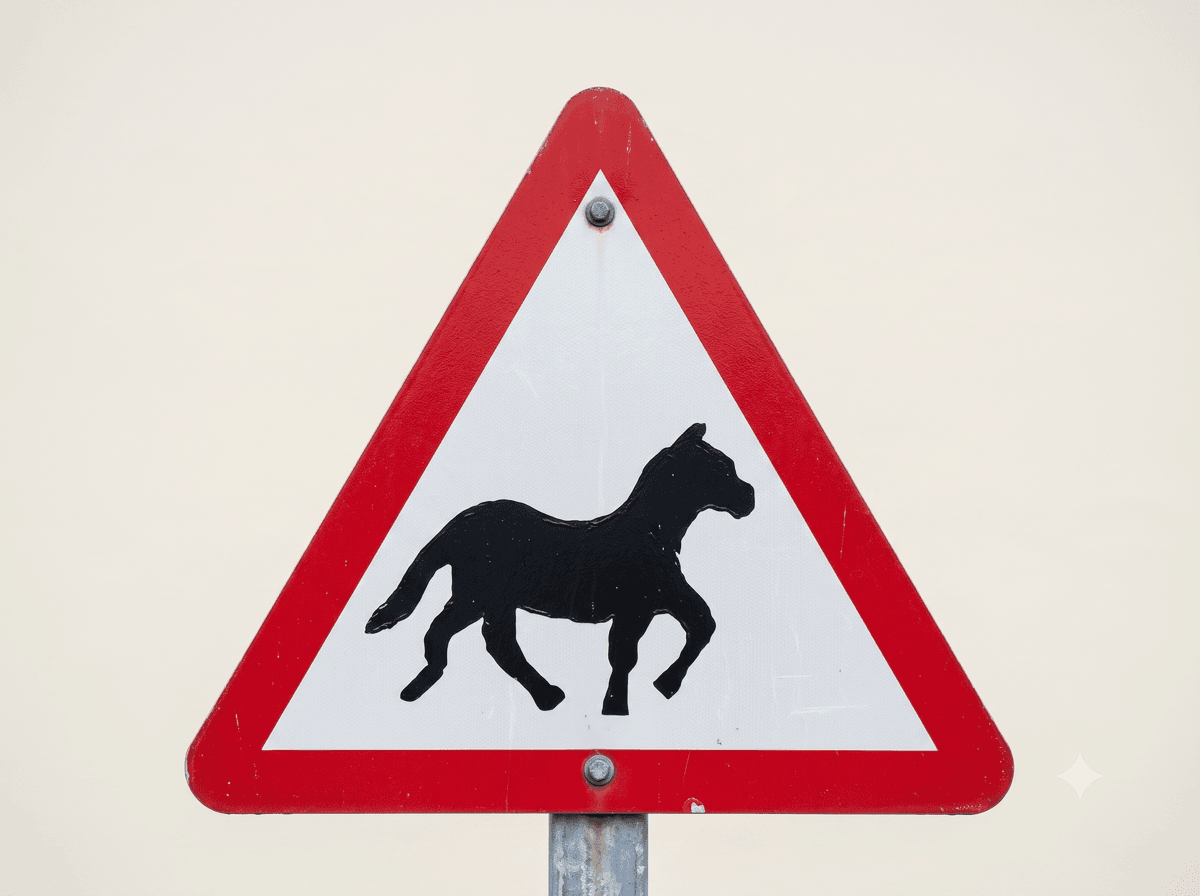

Animals Ahead
Animals Ahead
Animals may cross the road; be prepared to stop.

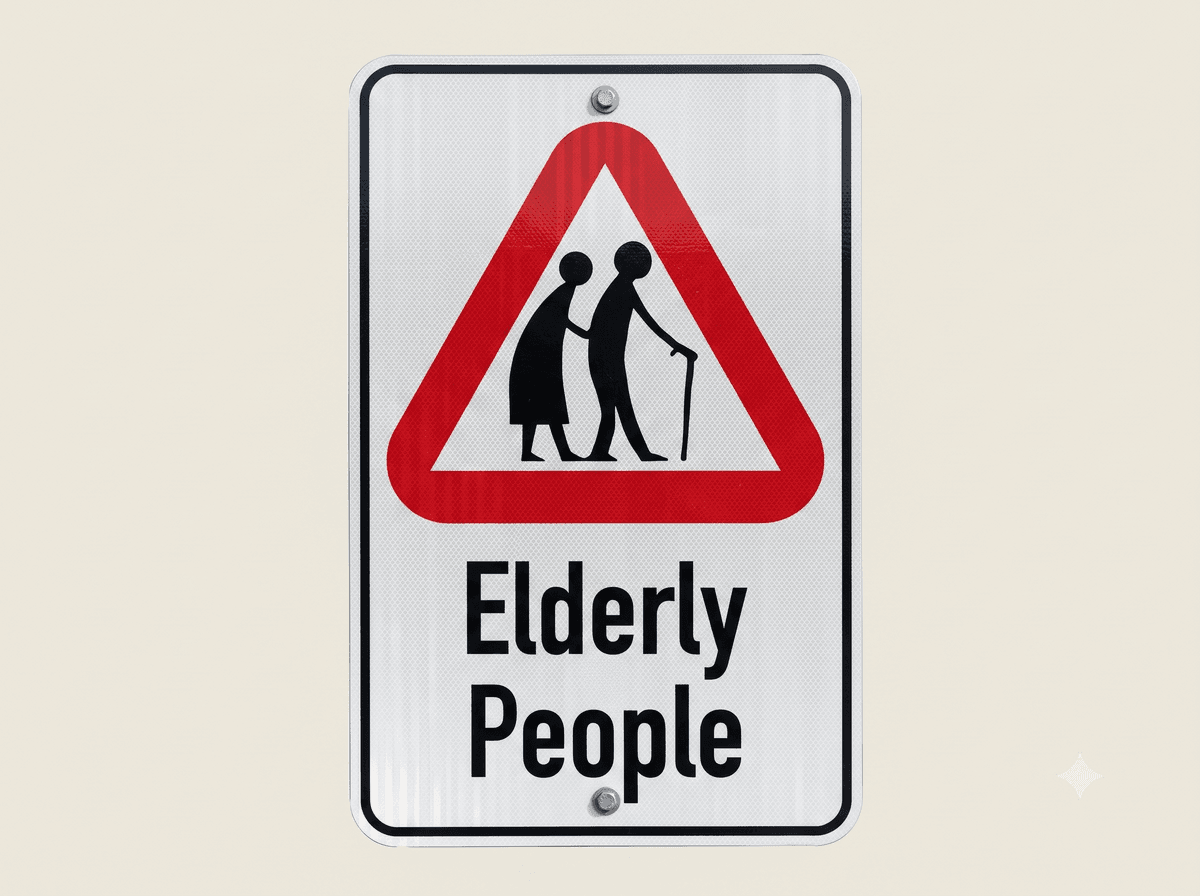

Elderly or Disabled Pedestrians
Elderly or Disabled Pedestrians
Vulnerable pedestrians may cross; give them extra time.

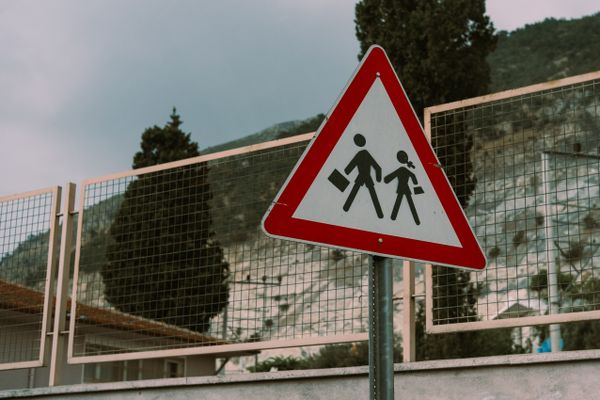

School Zone
School Zone
School area; reduce speed and watch for children.

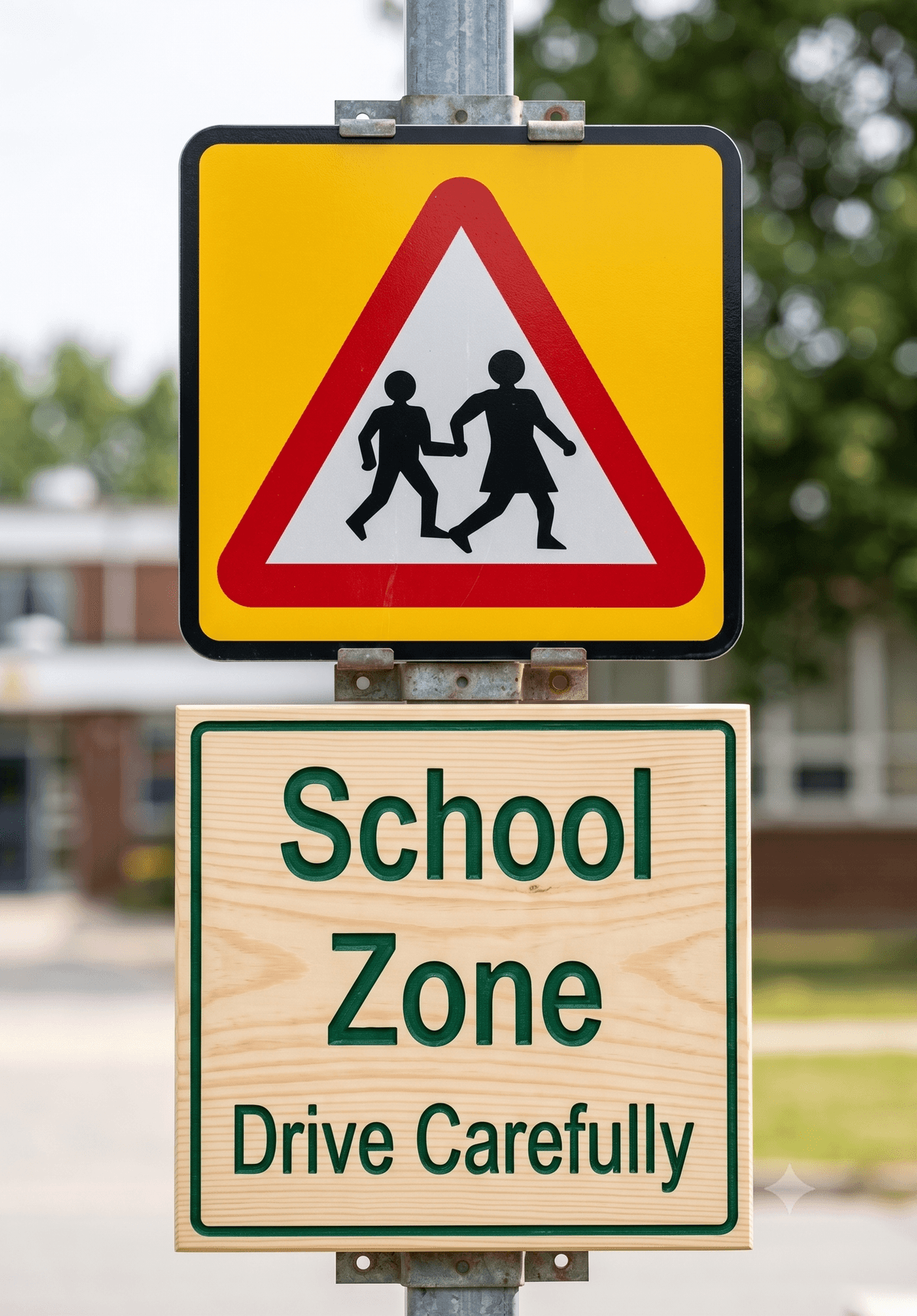

Start of School Zone
Start of School Zone
You are entering a school zone; obey the lower speed limit.

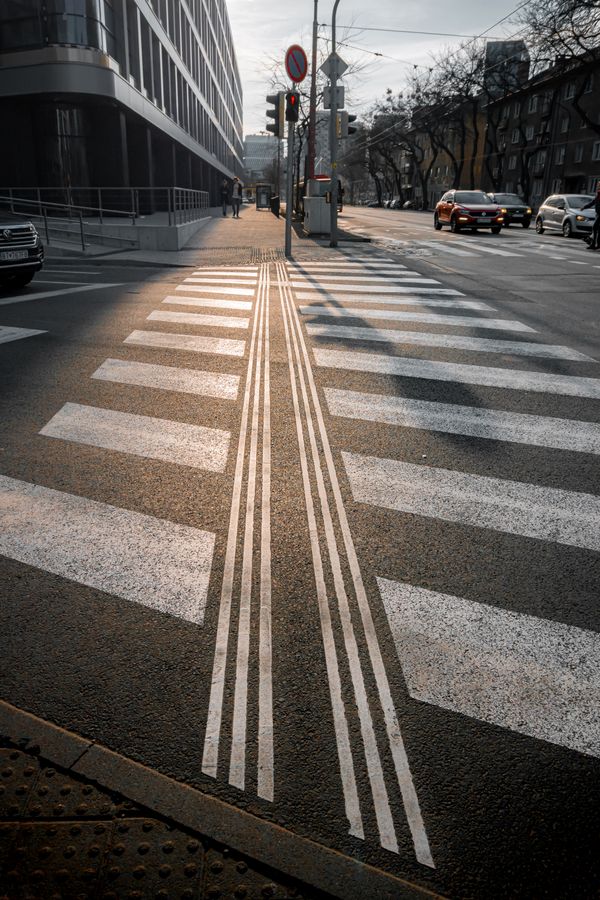

Pedestrian Crossing Ahead
Pedestrian Crossing Ahead
Pedestrian crossing ahead; be ready to stop.

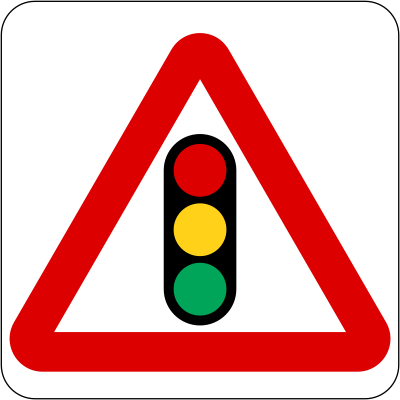

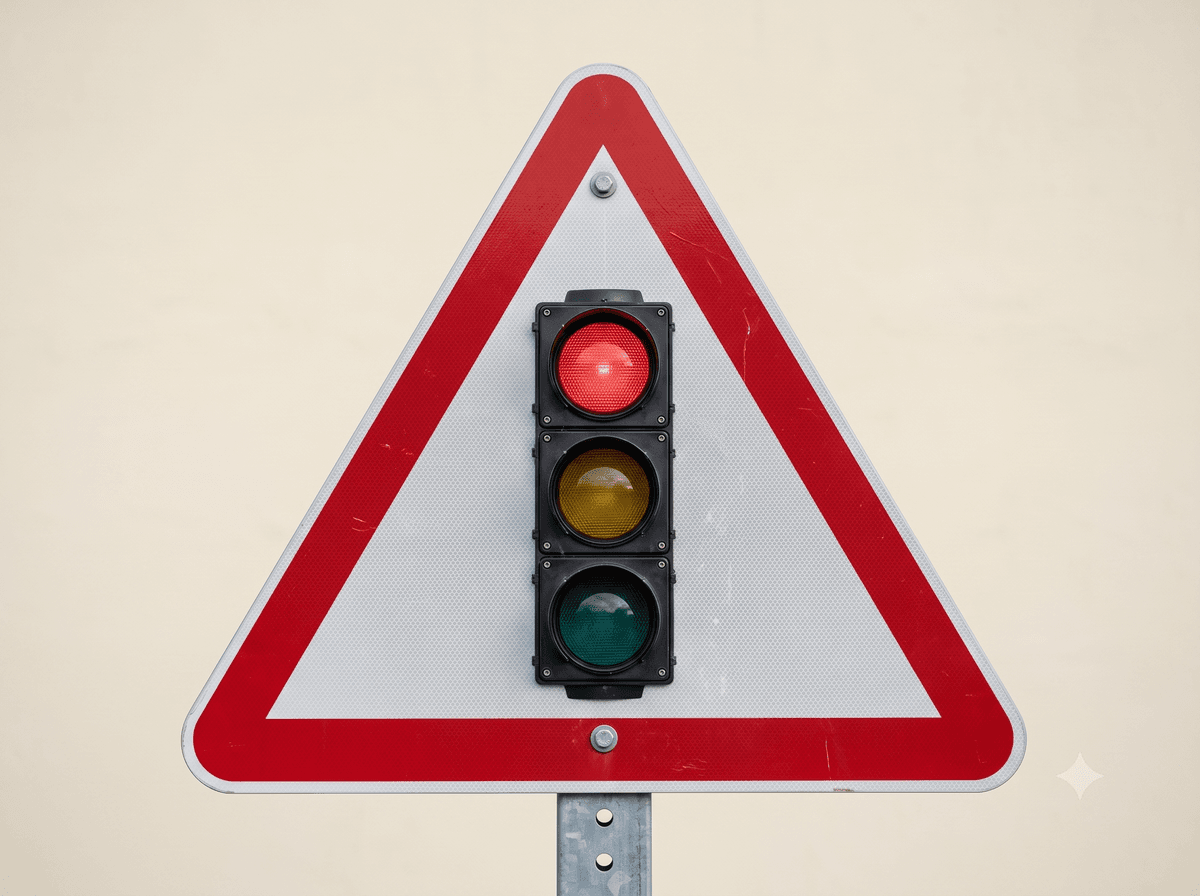

Traffic Lights Ahead
Traffic Lights Ahead
Traffic signals ahead; prepare to stop if needed.

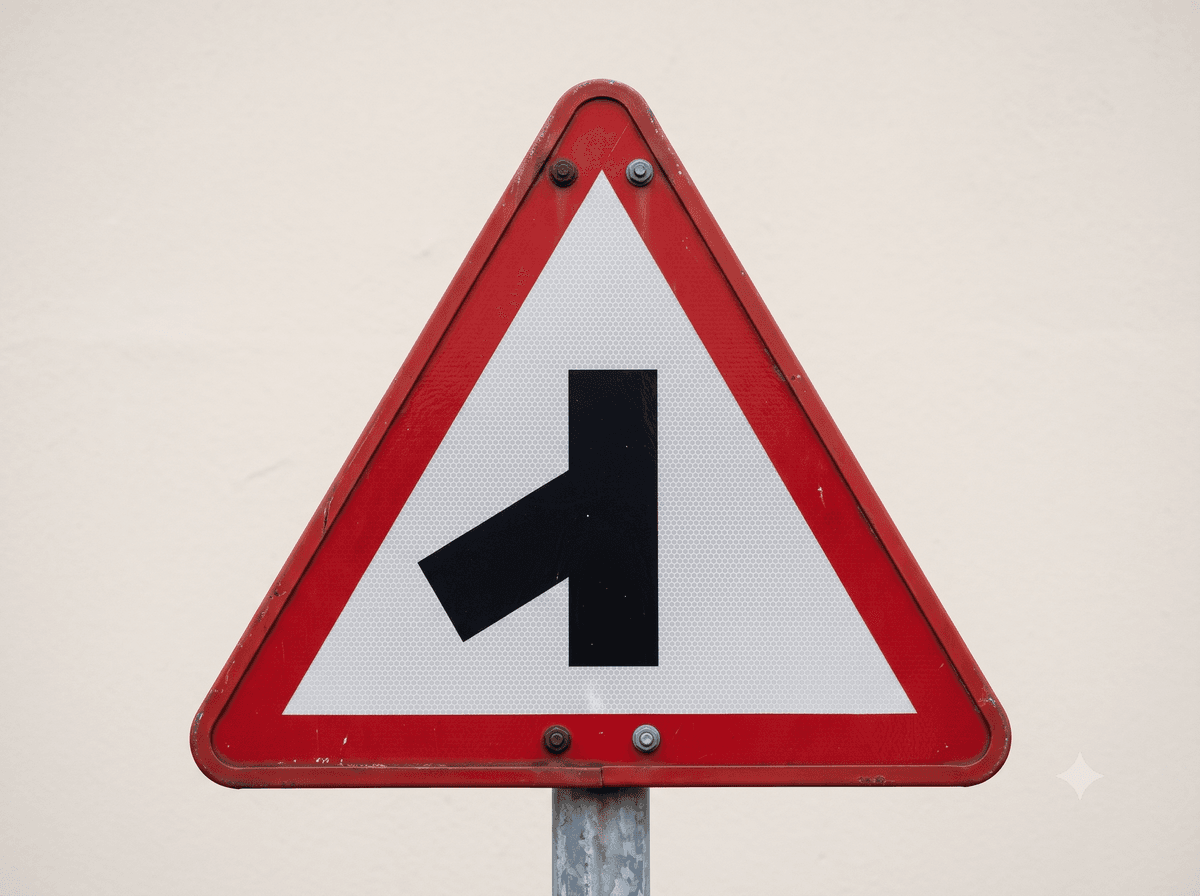

Merging Traffic
Merging Traffic
Traffic merges from the side; adjust speed and give way.
Lanes Merging
Lanes Merging
Lanes merge ahead; merge early and safely.

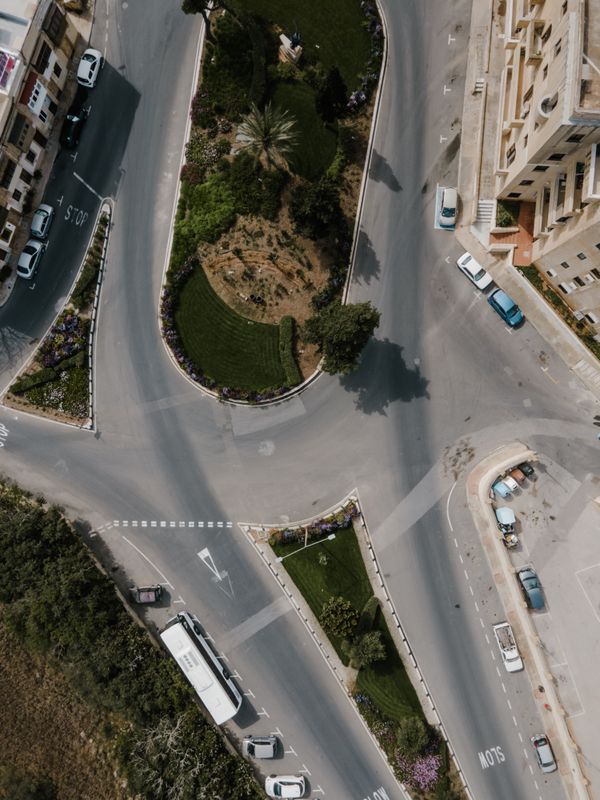

Roundabout Ahead
Roundabout Ahead
Roundabout ahead; give way to traffic already in the circle.

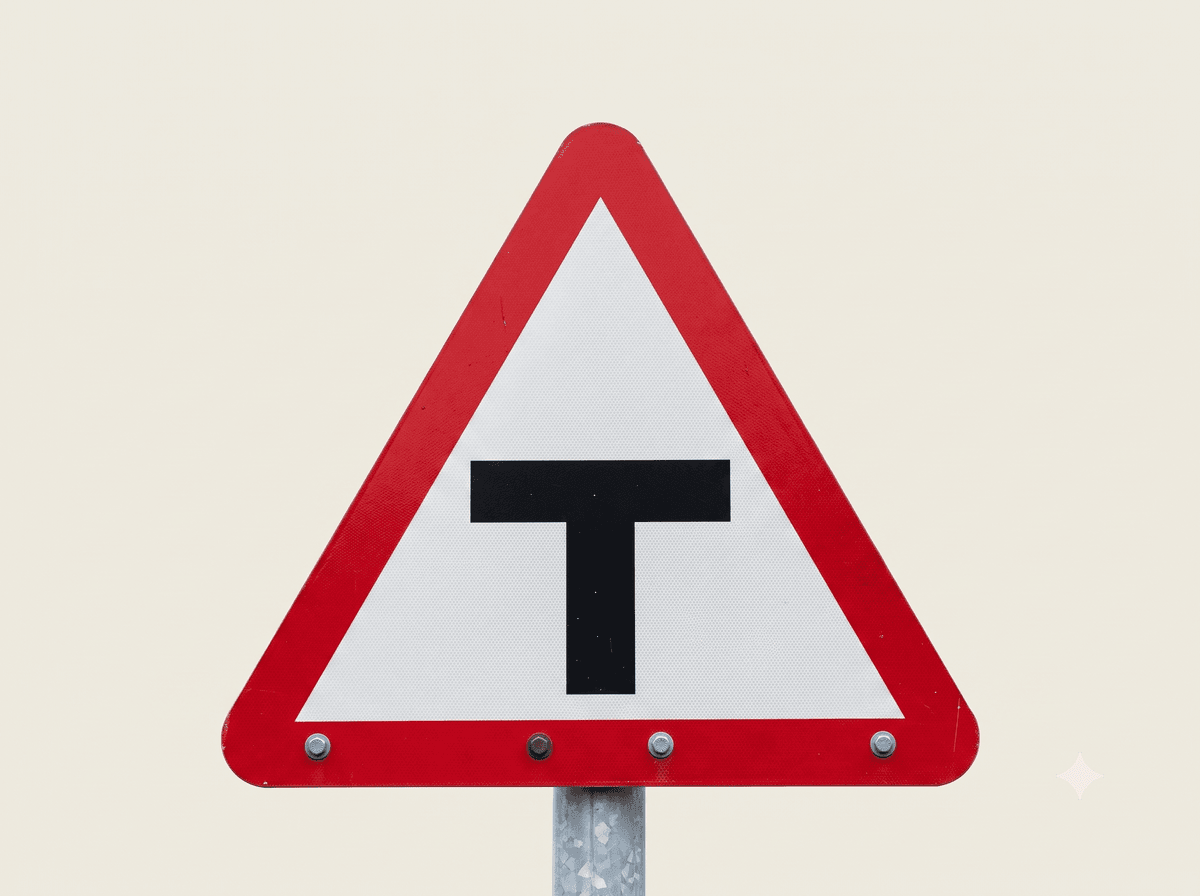

T-Junction Ahead
T-Junction Ahead
T-junction ahead; check both directions.

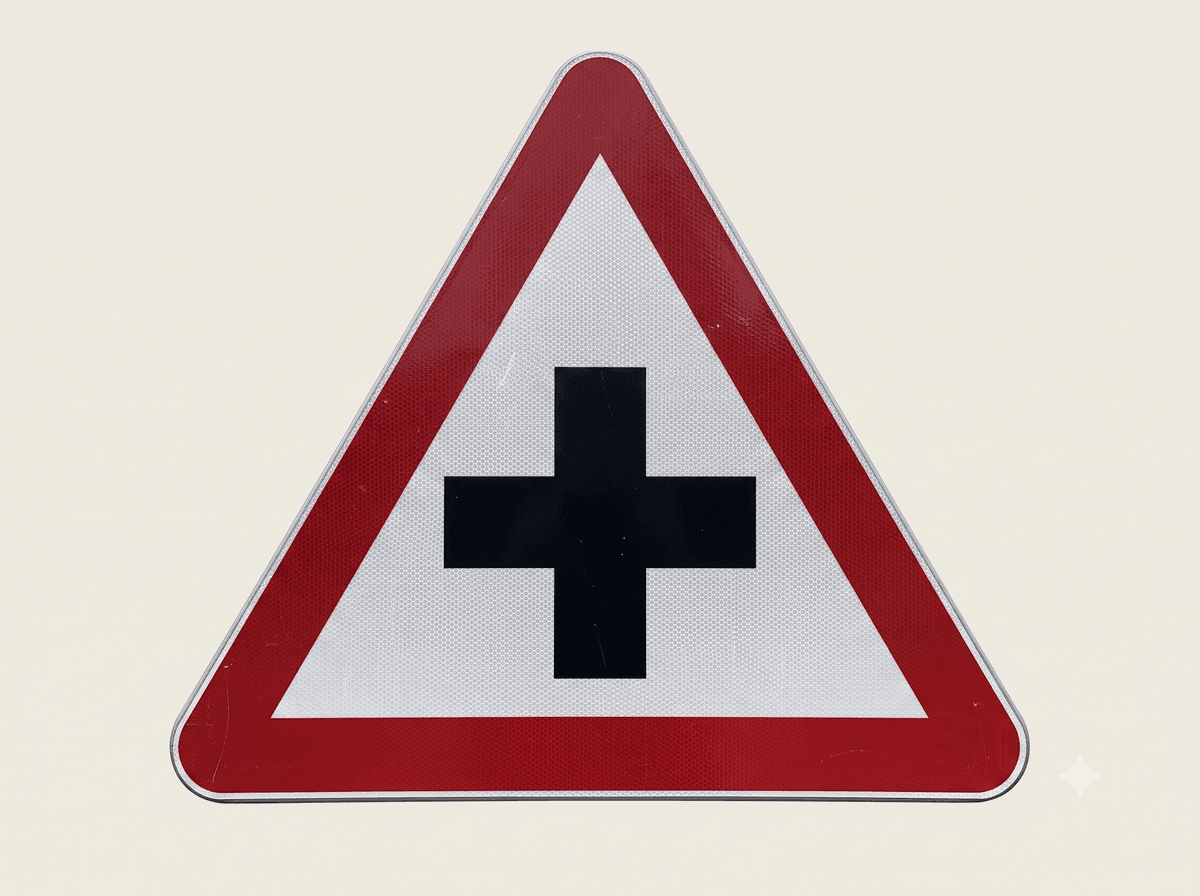

Cross Junction Ahead
Cross Junction Ahead
Cross junction ahead; check all approaches.
Road Narrows on One Side
Road Narrows on One Side
Road narrows on one side; adjust position and speed.
Ungated Level Crossing
Ungated Level Crossing
Railway crossing without gates; stop and look both ways.

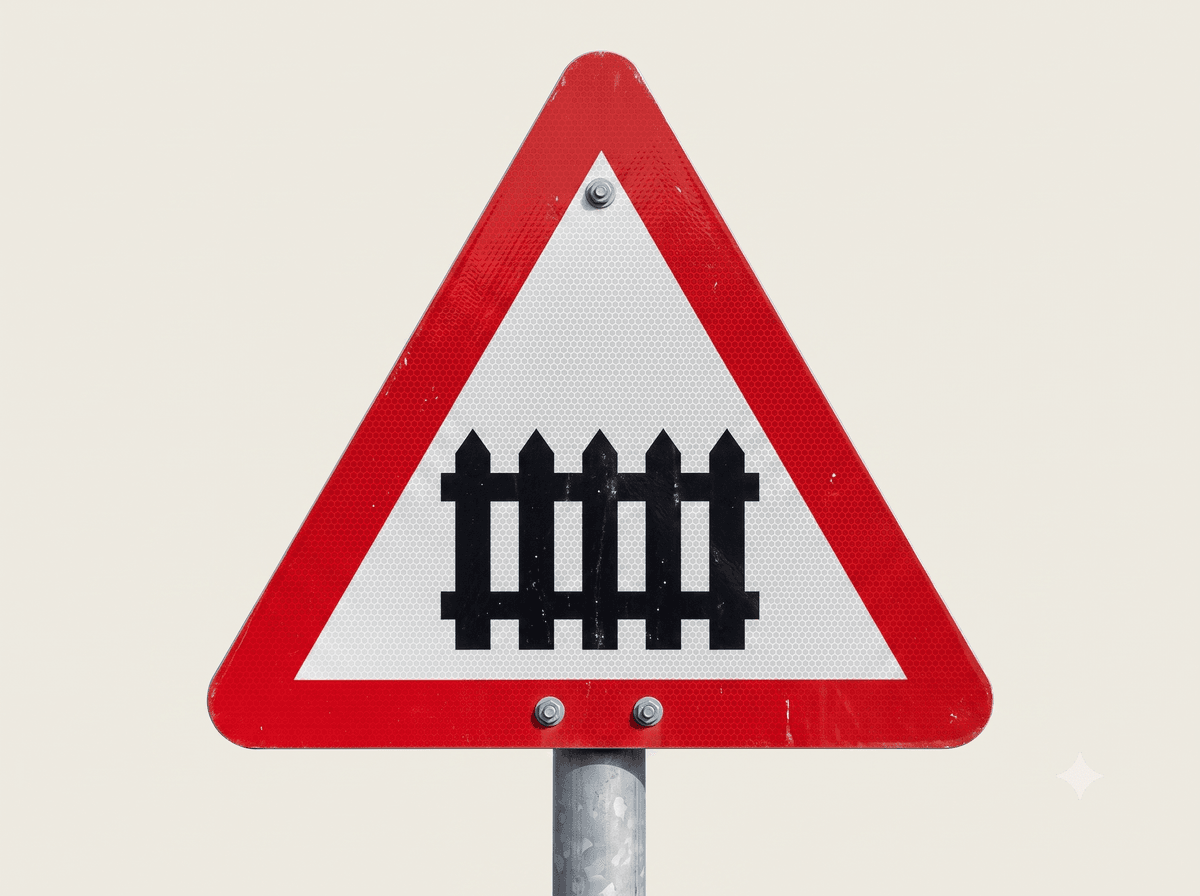

Gated Level Crossing
Gated Level Crossing
Railway crossing with gates; never cross when barriers are down.

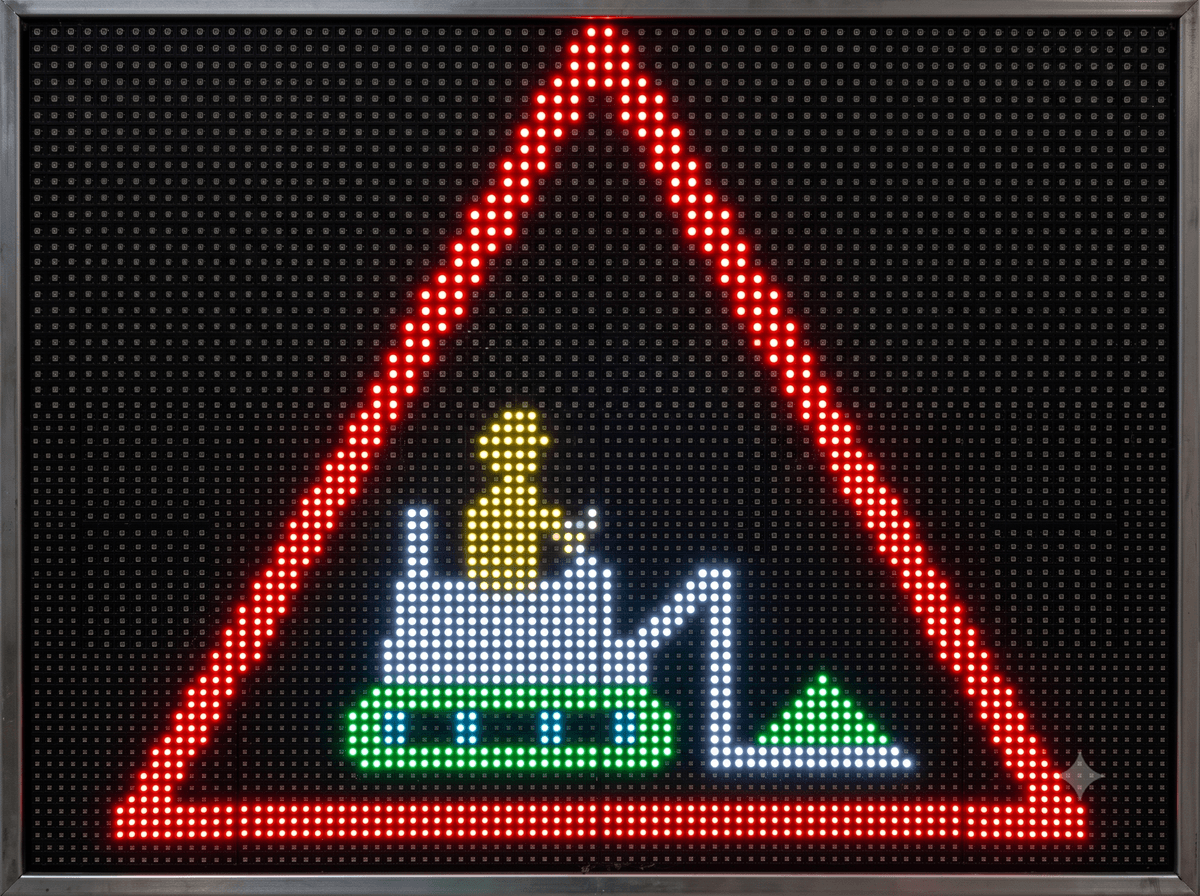

Roadworks Ahead
Roadworks Ahead
Roadworks ahead; slow down and follow temporary signs.
Tunnel Ahead
Tunnel Ahead
Tunnel ahead; switch on headlights and maintain safe distance.

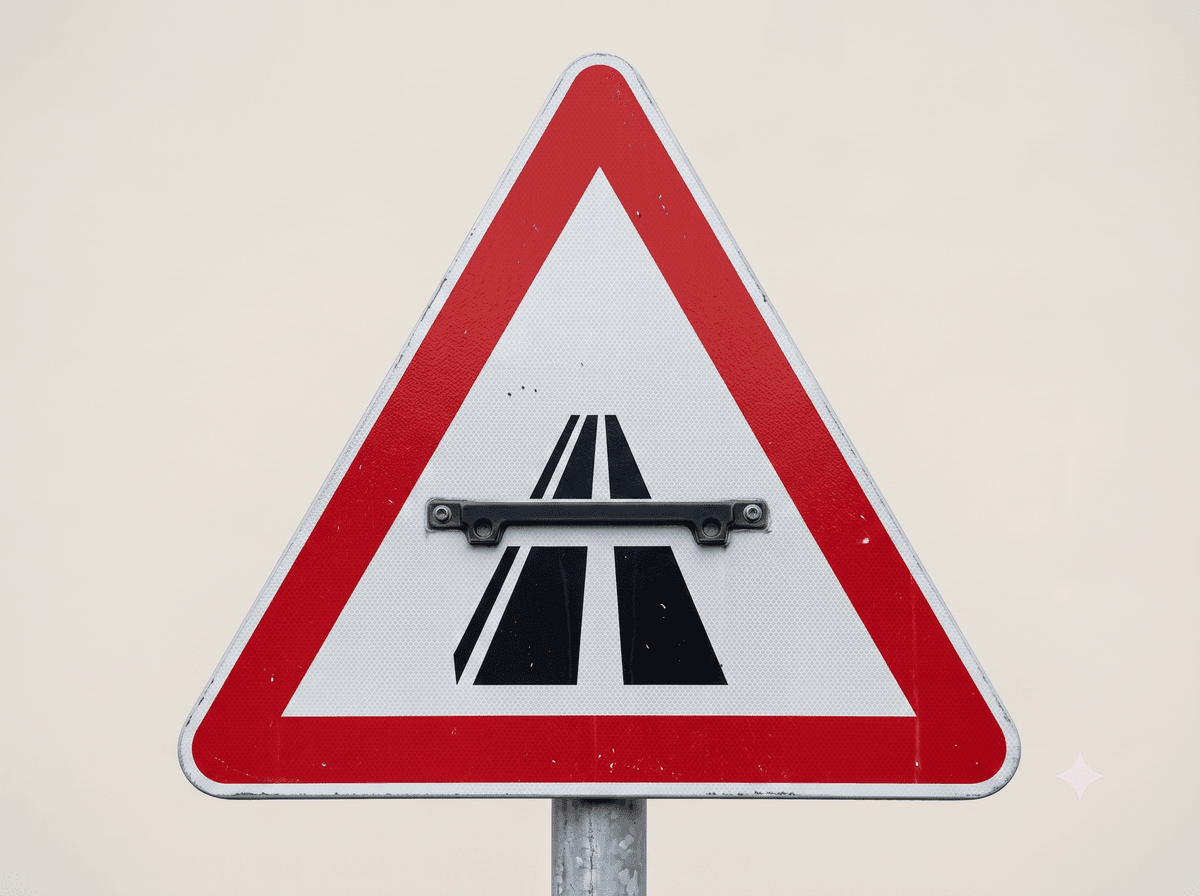

Expressway Ahead
Expressway Ahead
Expressway entrance ahead; match merging speed and give way.

Informational

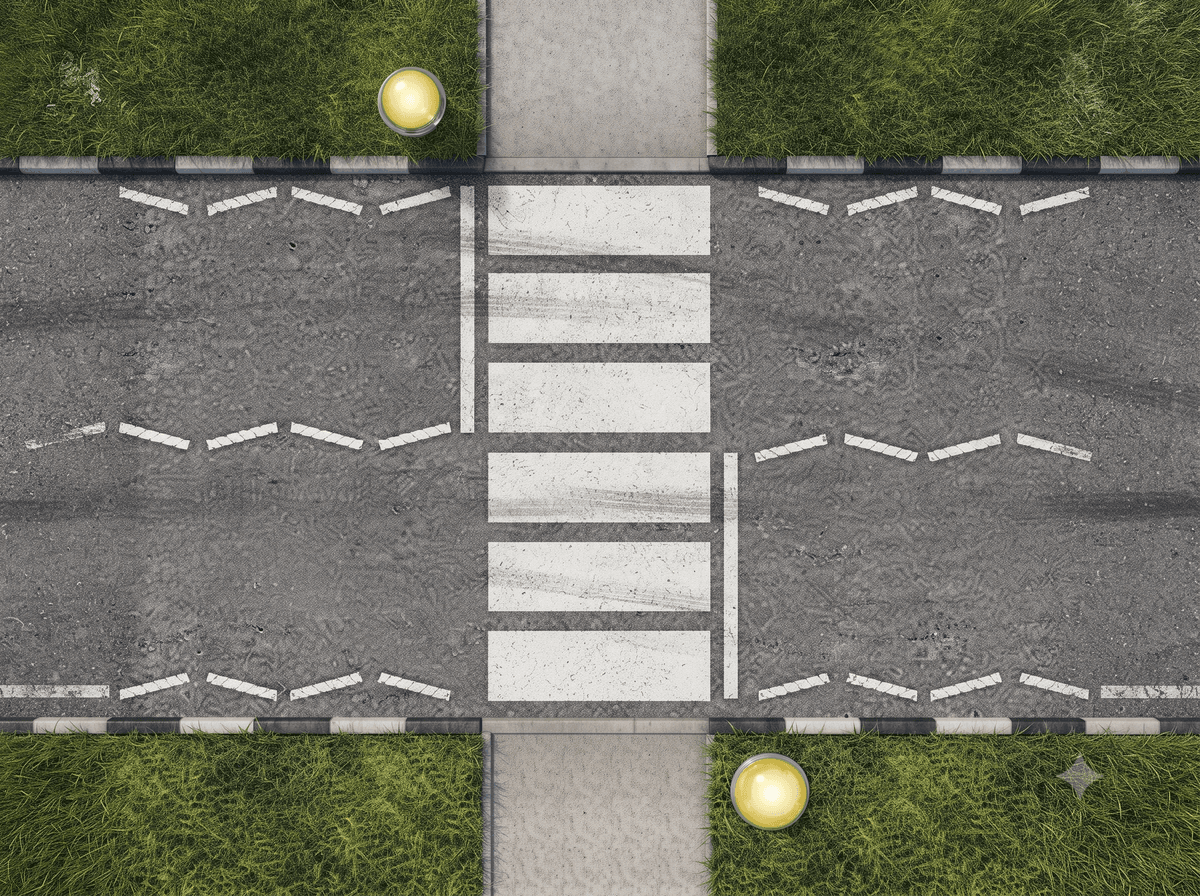

Zebra Crossing
Zebra Crossing
Pedestrians have priority at this crossing; stop if needed.

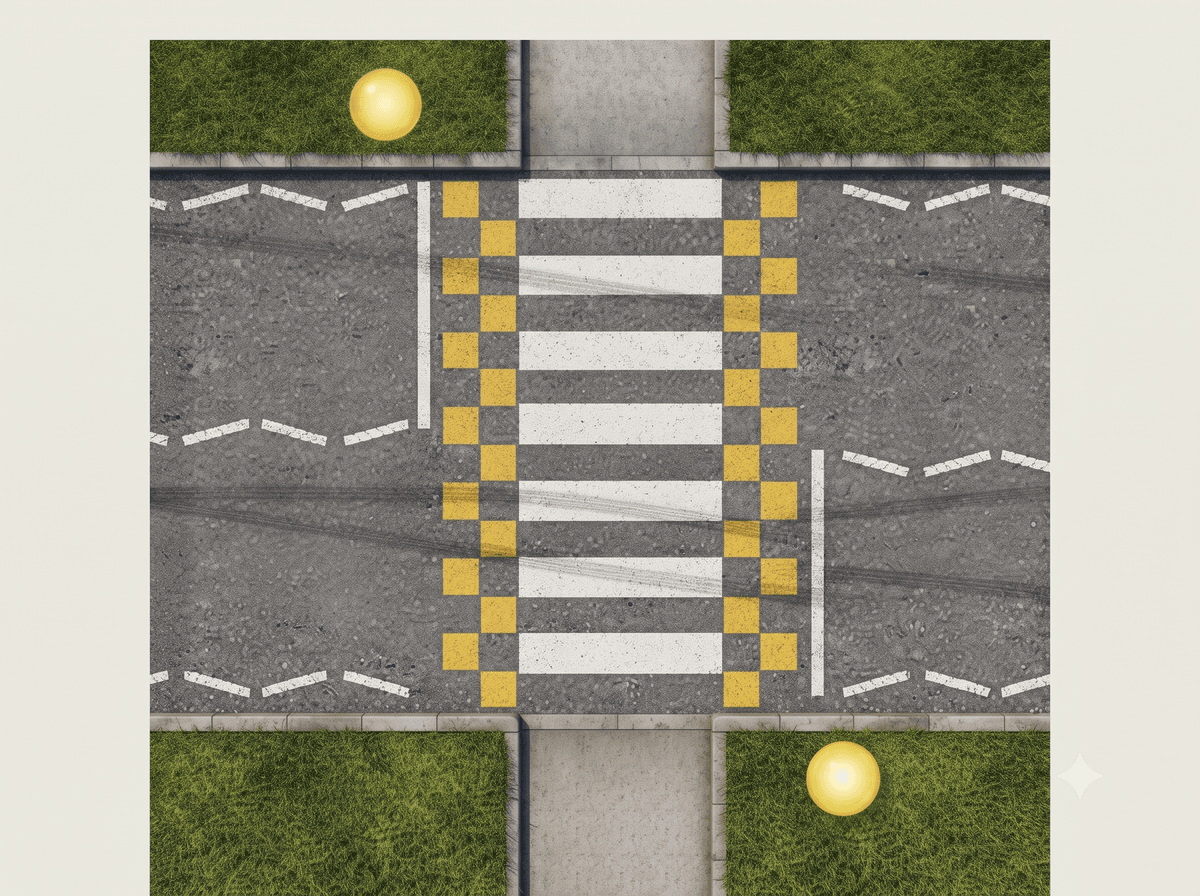

Raised Zebra Crossing
Raised Zebra Crossing
Raised crossing ahead; slow down for pedestrians.

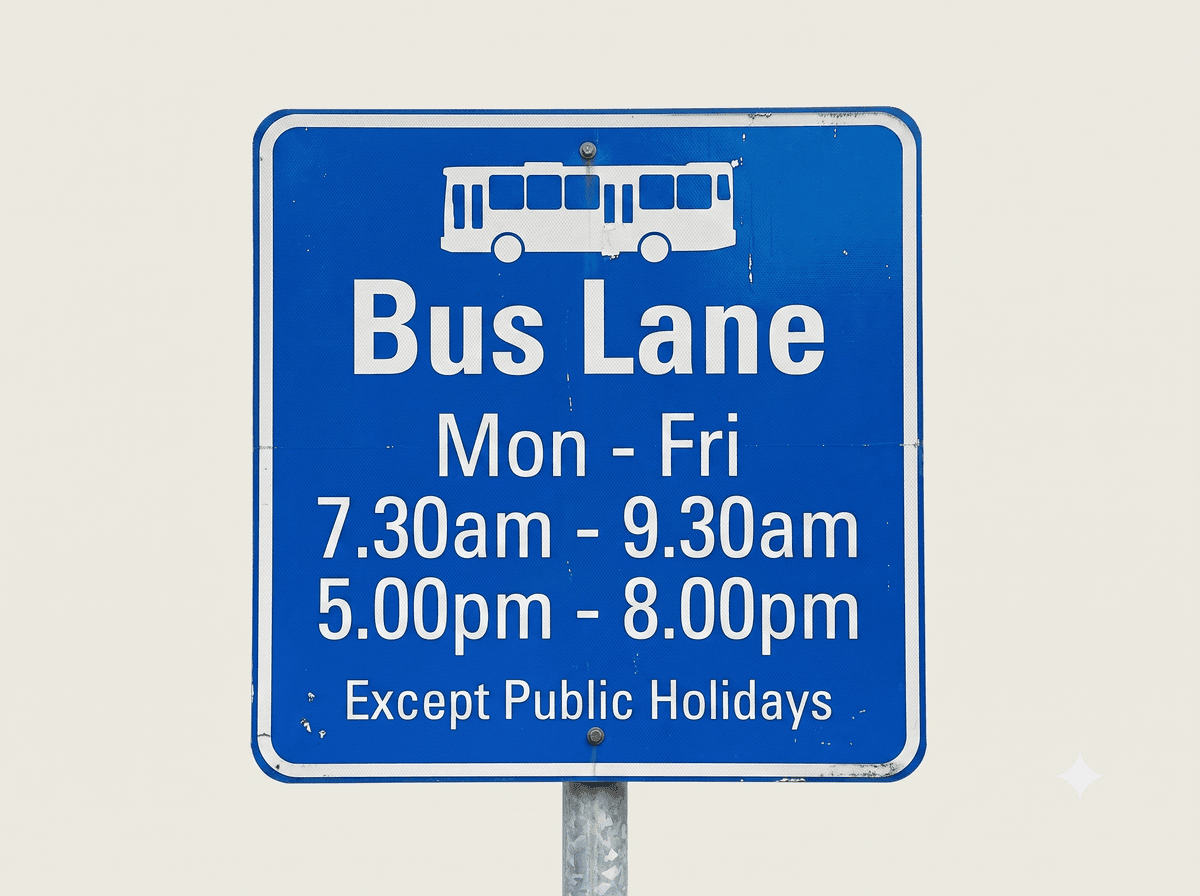

Bus Lane
Bus Lane
Lane reserved for buses during shown hours.

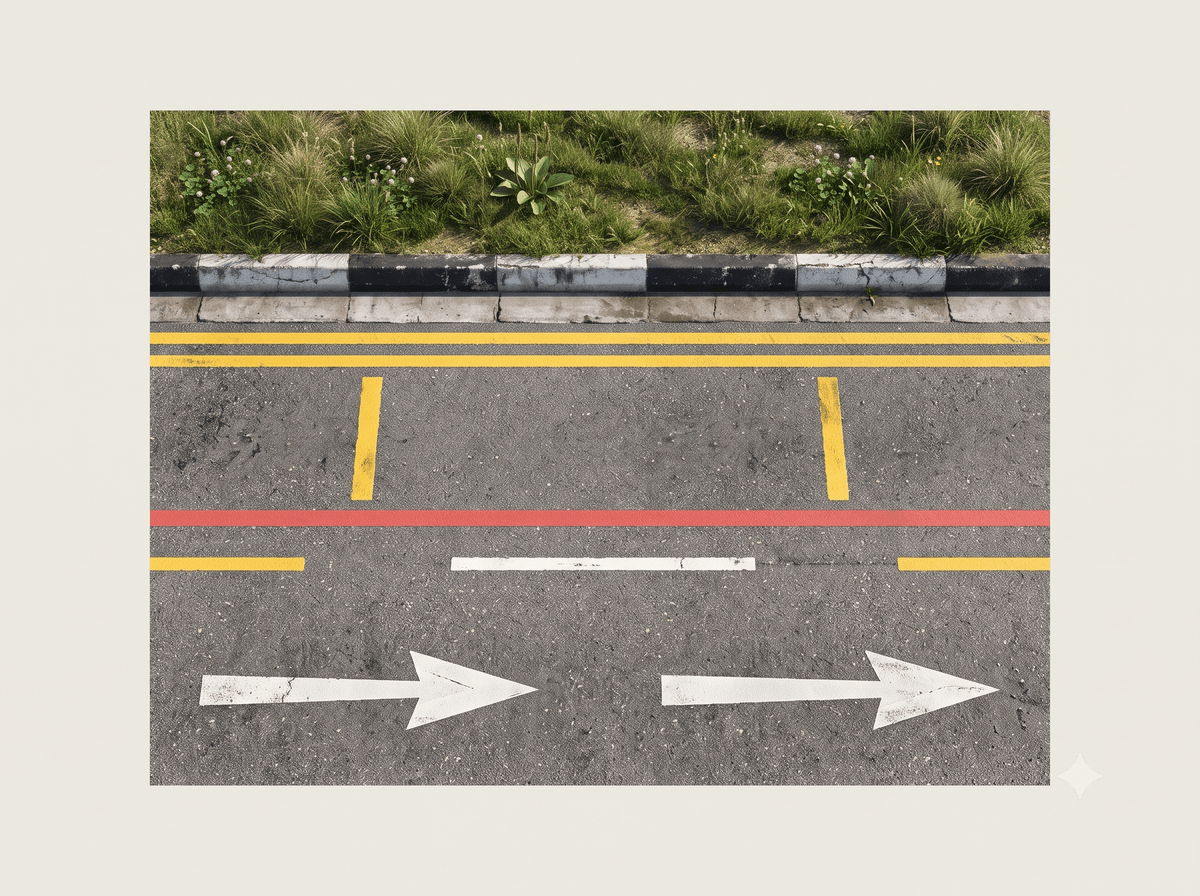

Full-Day Bus Lane
Full-Day Bus Lane
Bus lane active all day; other vehicles must not use it.
ERP Gantry
ERP Gantry
Electronic road pricing gantry; ensure In-Vehicle Unit is working.

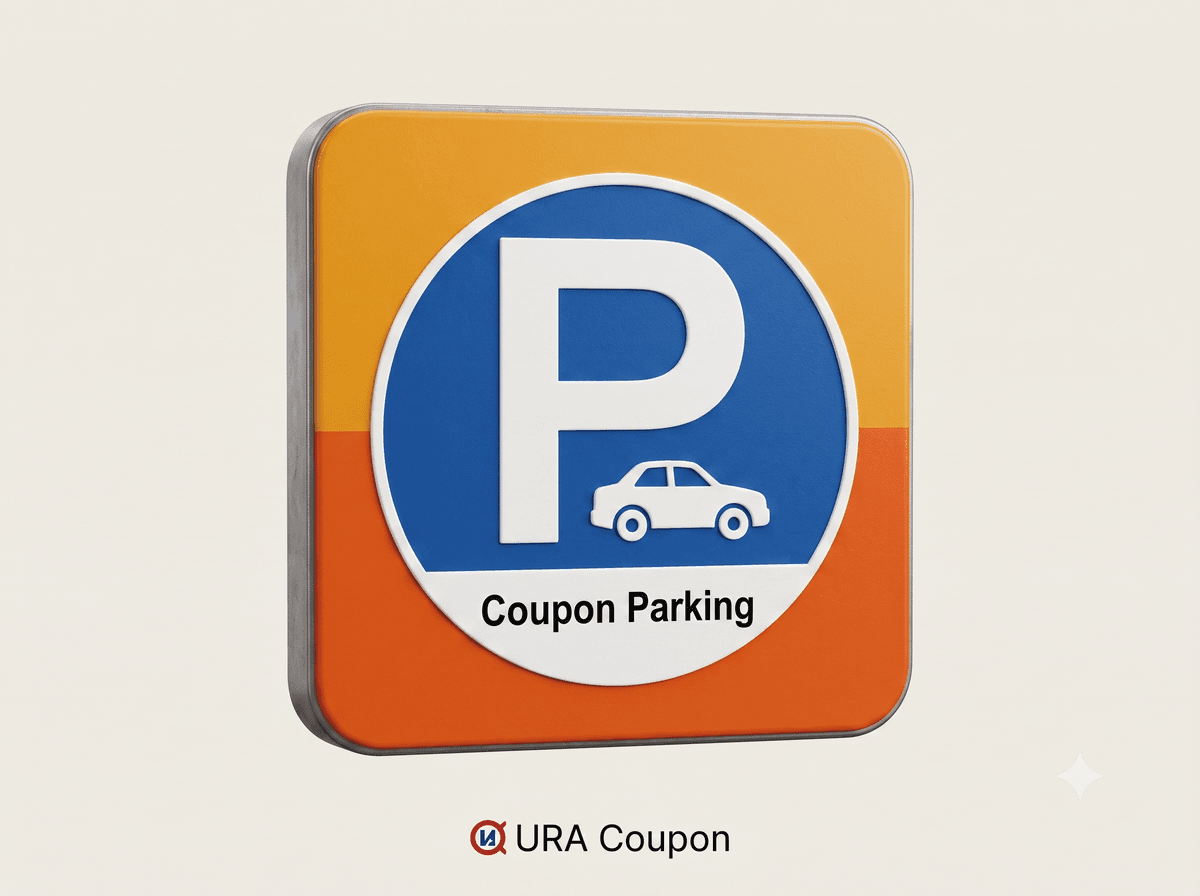

Parking Area
Parking Area
Parking allowed as shown on the sign or time plate.

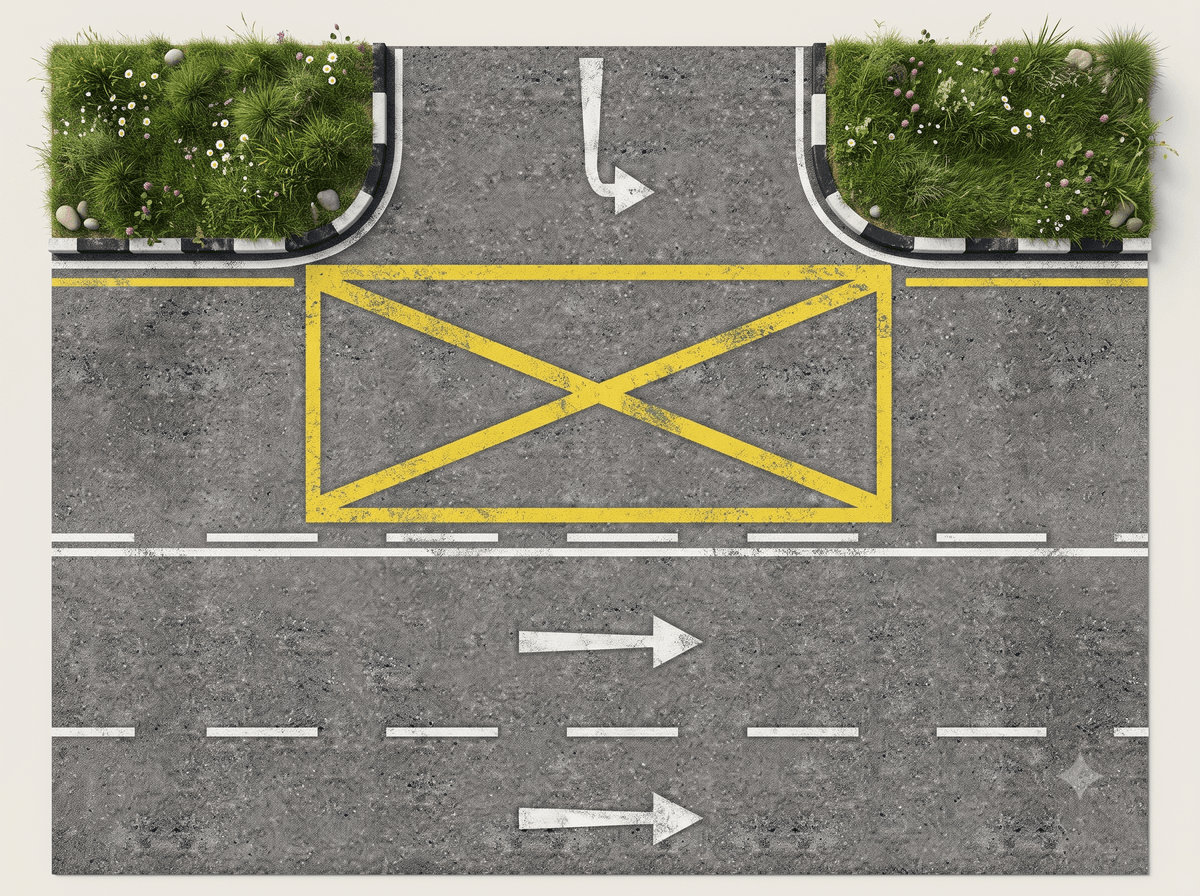

Yellow Box Junction
Yellow Box Junction
Do not enter the yellow box unless your exit is clear.

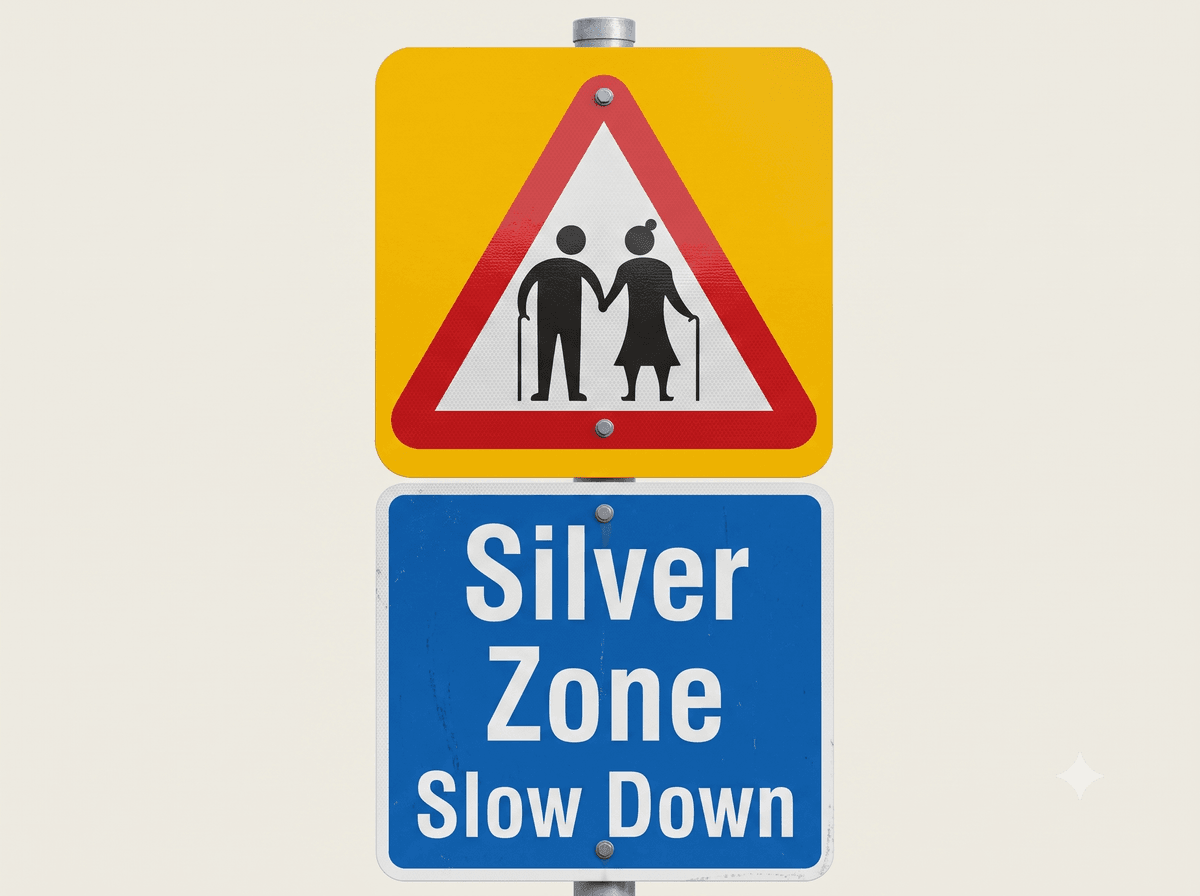

Silver Zone
Silver Zone
Senior-friendly zone; extra care for elderly pedestrians.

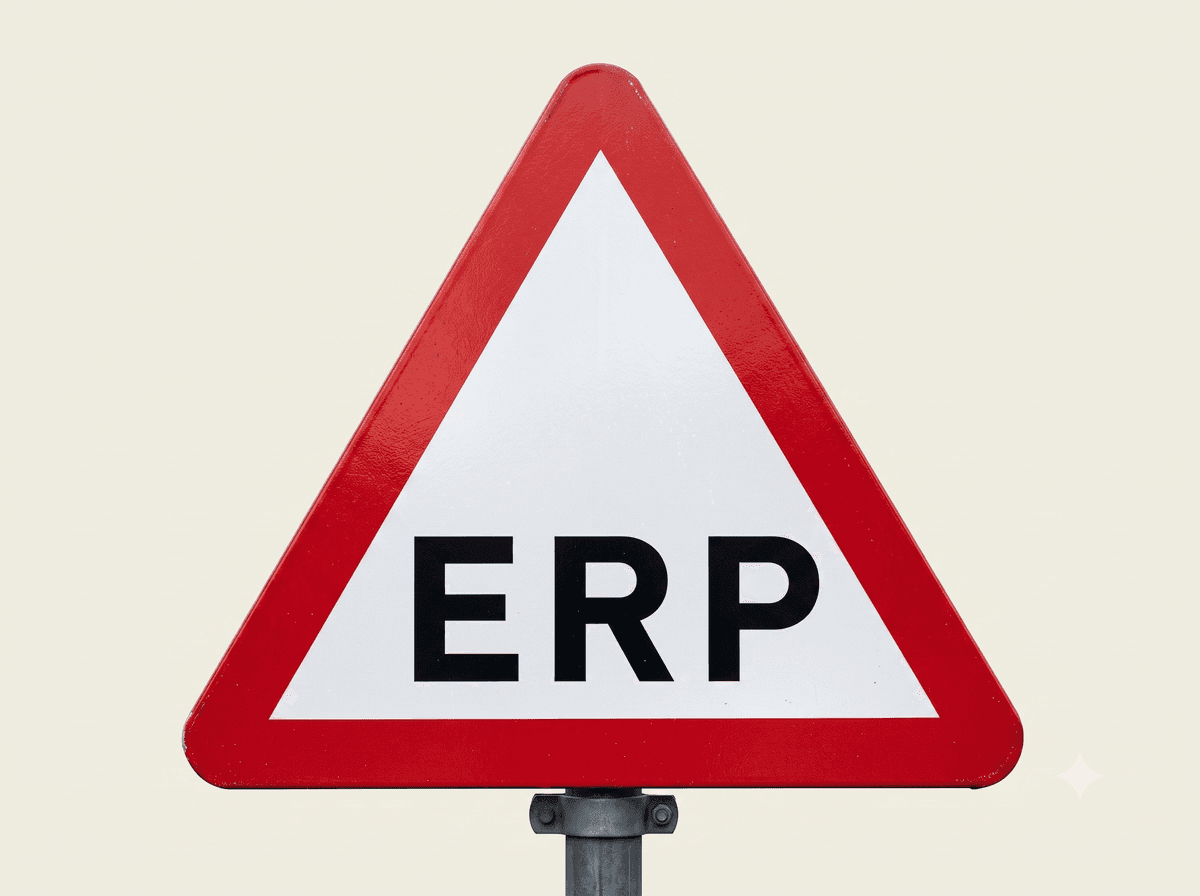

Pricing Zone Ahead
Pricing Zone Ahead
Paid parking or pricing zone ahead; check rates.

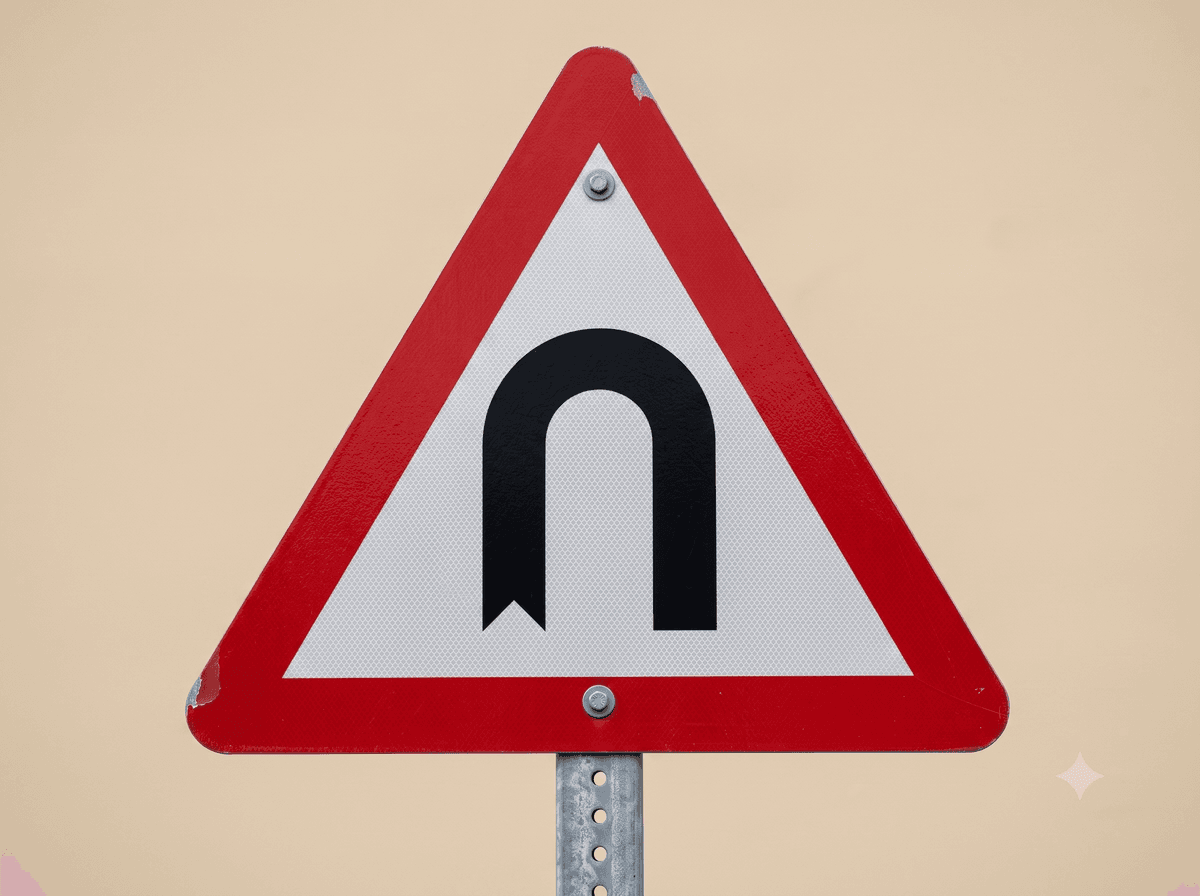

U-Turn Ahead
U-Turn Ahead
U-turn facility ahead; use only if safe and permitted.

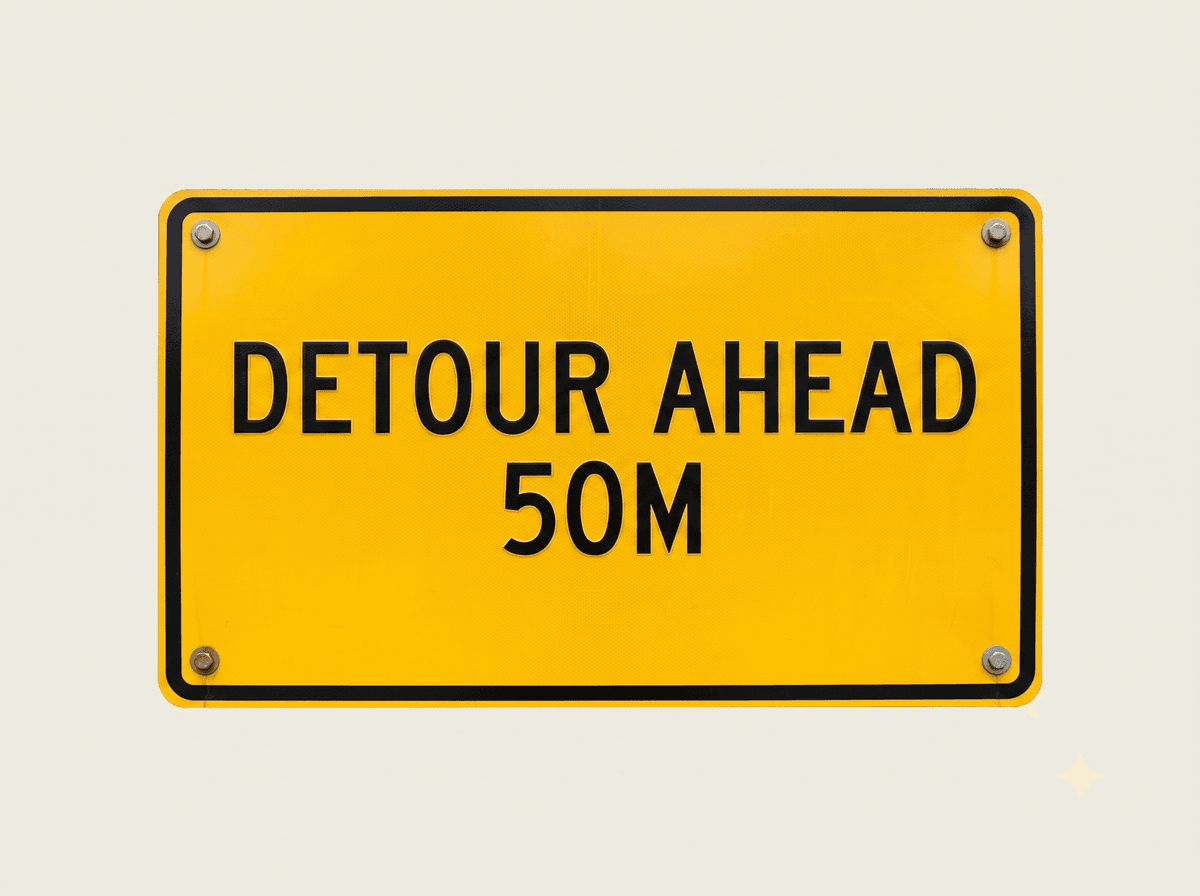

Detour Ahead
Detour Ahead
Follow the detour route; do not use closed roads.

Road Markings

Double Yellow Lines
Double Yellow Lines
No parking on either side at all times.

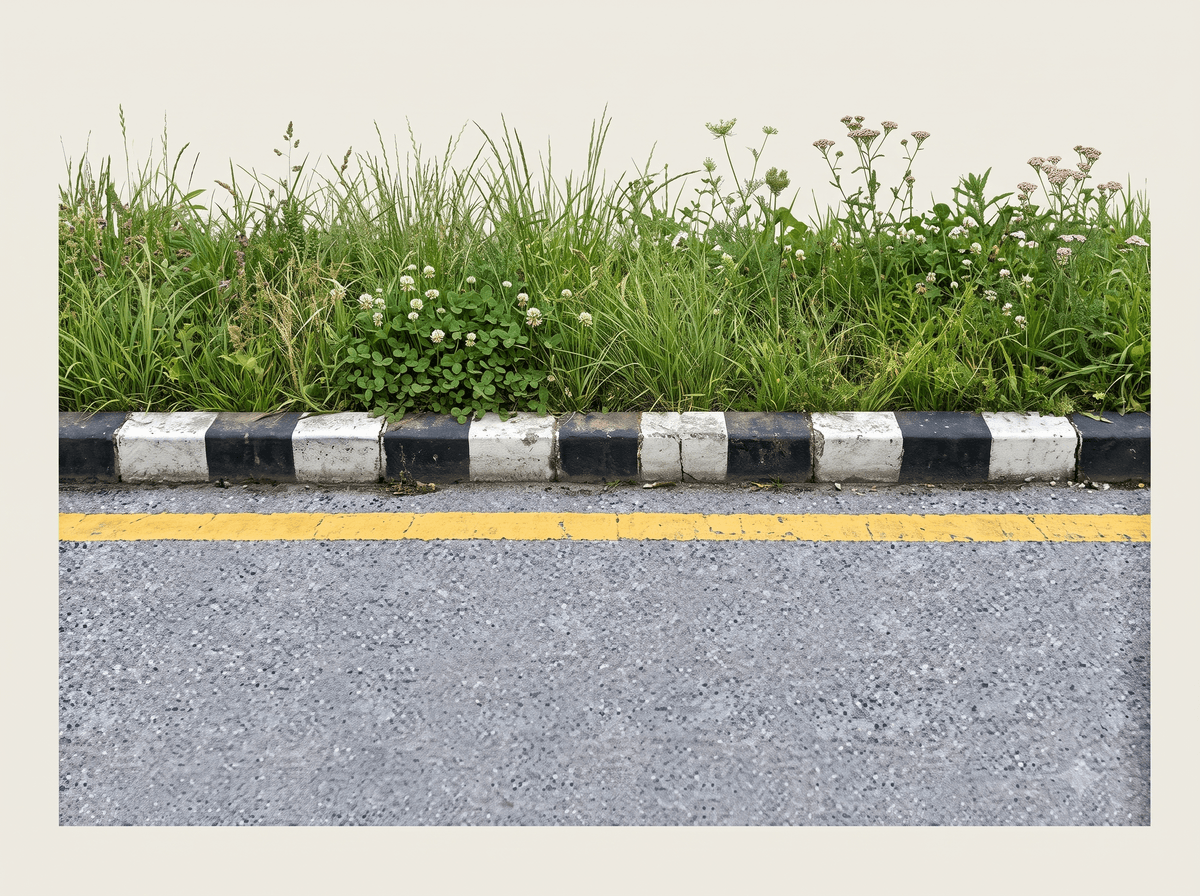

Single Yellow Line
Single Yellow Line
No parking on that side during restricted hours.

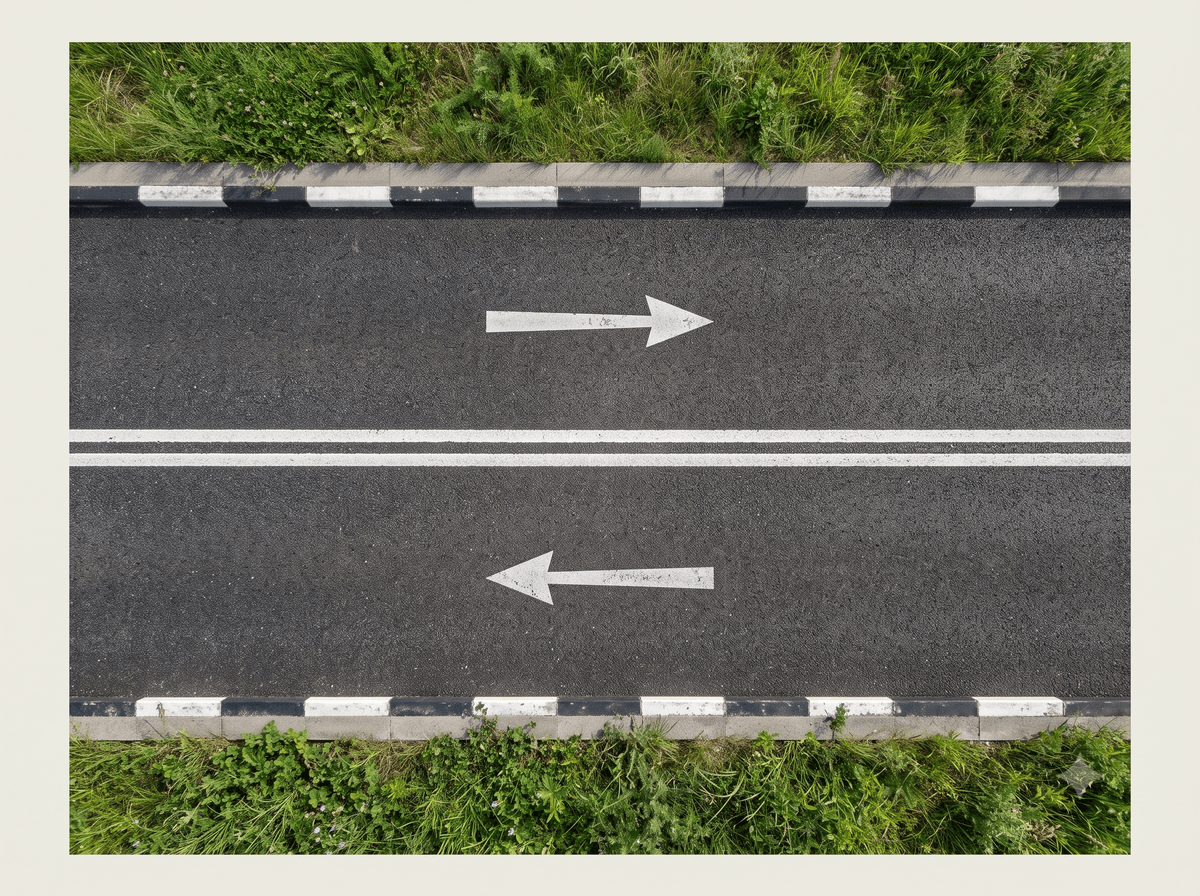

Double White Lines
Double White Lines
Do not cross or straddle the centre lines.

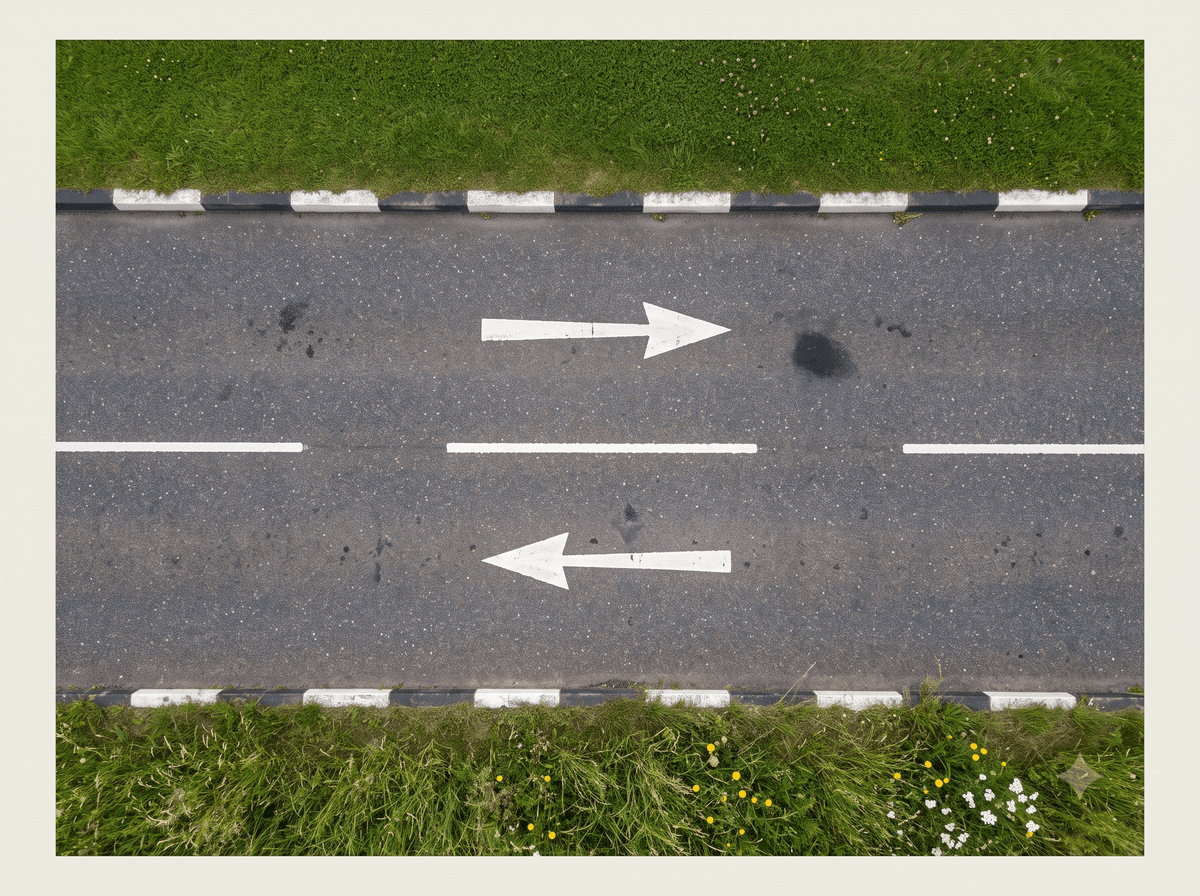

Broken White Line
Broken White Line
Lane divider; you may change lanes when safe.
Continuous White Line
Continuous White Line
Do not cross this line to overtake or change lanes.

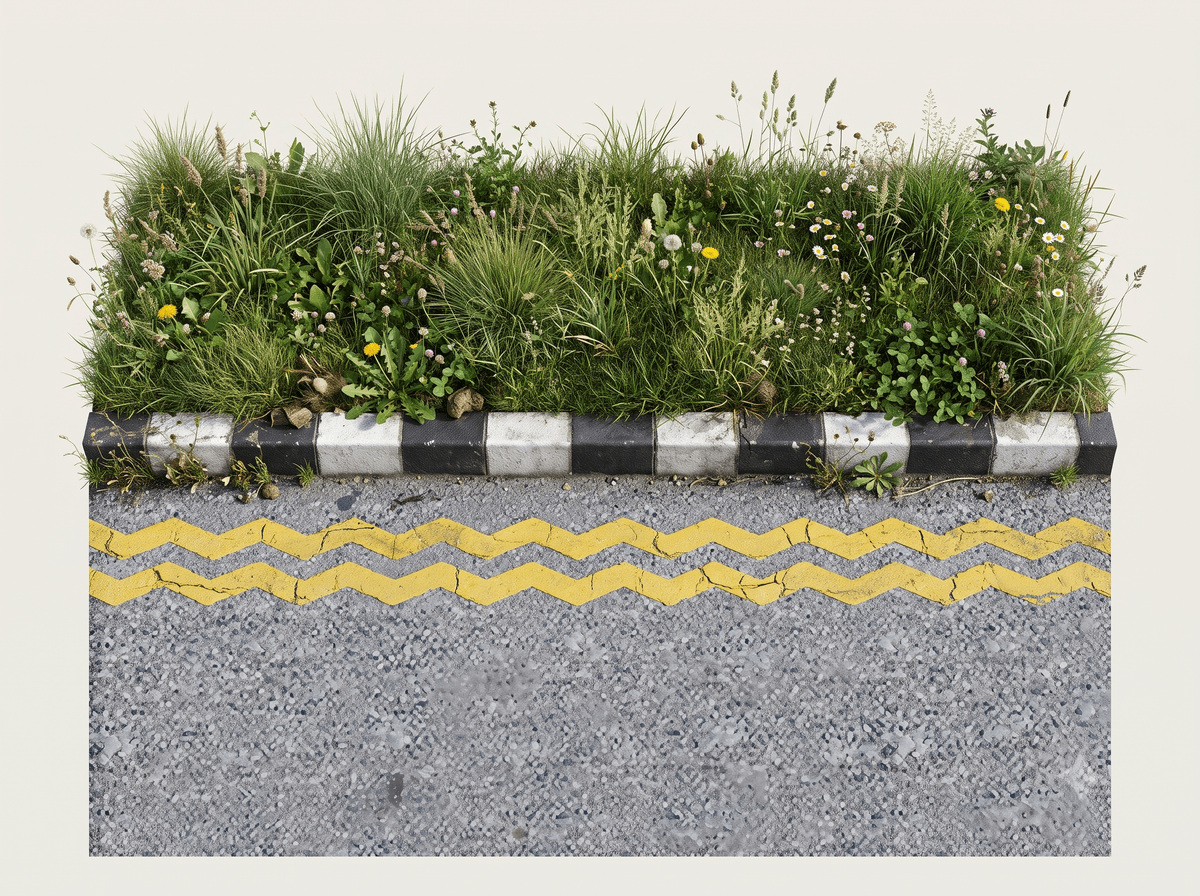

Double Yellow Zig-Zag Lines
Double Yellow Zig-Zag Lines
No stopping or parking near a pedestrian crossing.

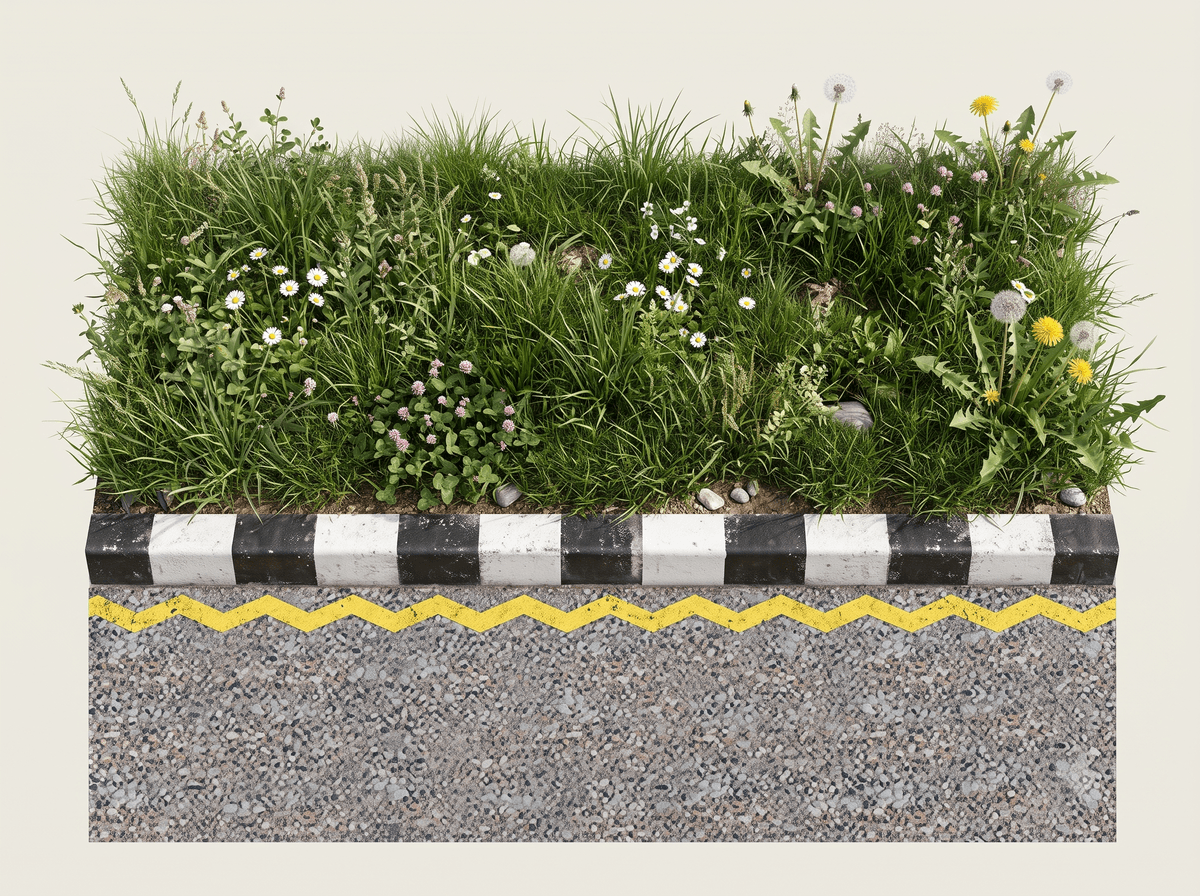

Single Yellow Zig-Zag Line
Single Yellow Zig-Zag Line
No waiting on the side with zig-zag markings.

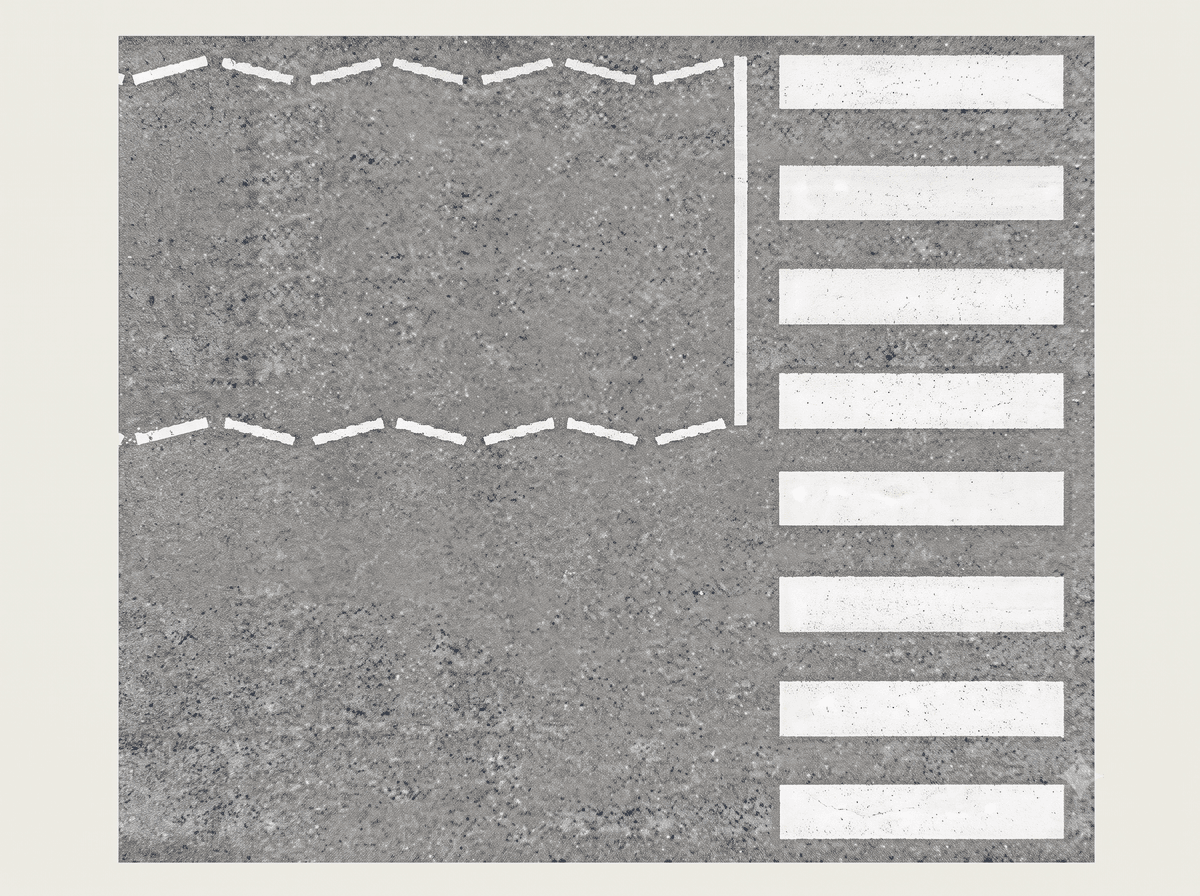

Zig-Zag Lines by Roadside
Zig-Zag Lines by Roadside
Marks a school or pedestrian zone; no stopping.

Traffic Lights & Signals

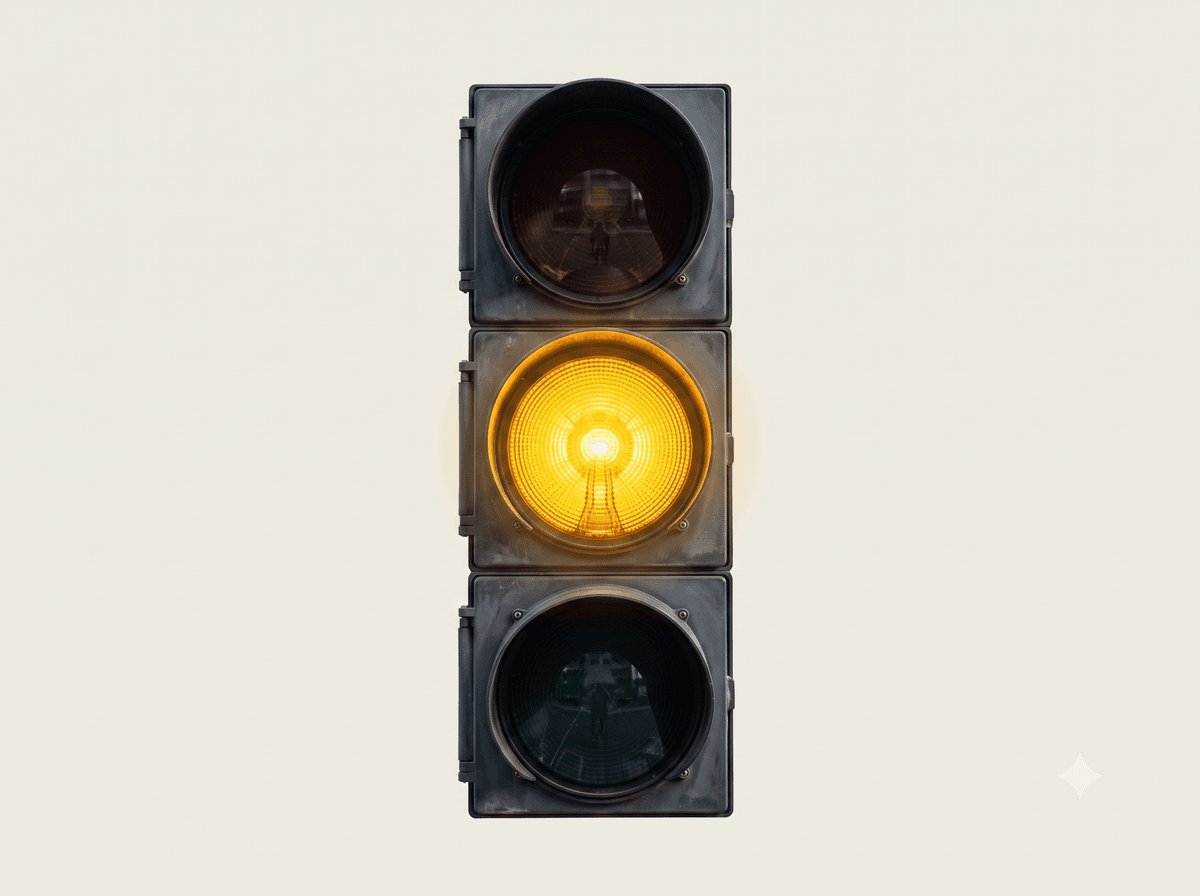

Amber Light
Amber Light
Prepare to stop unless you cannot stop safely.

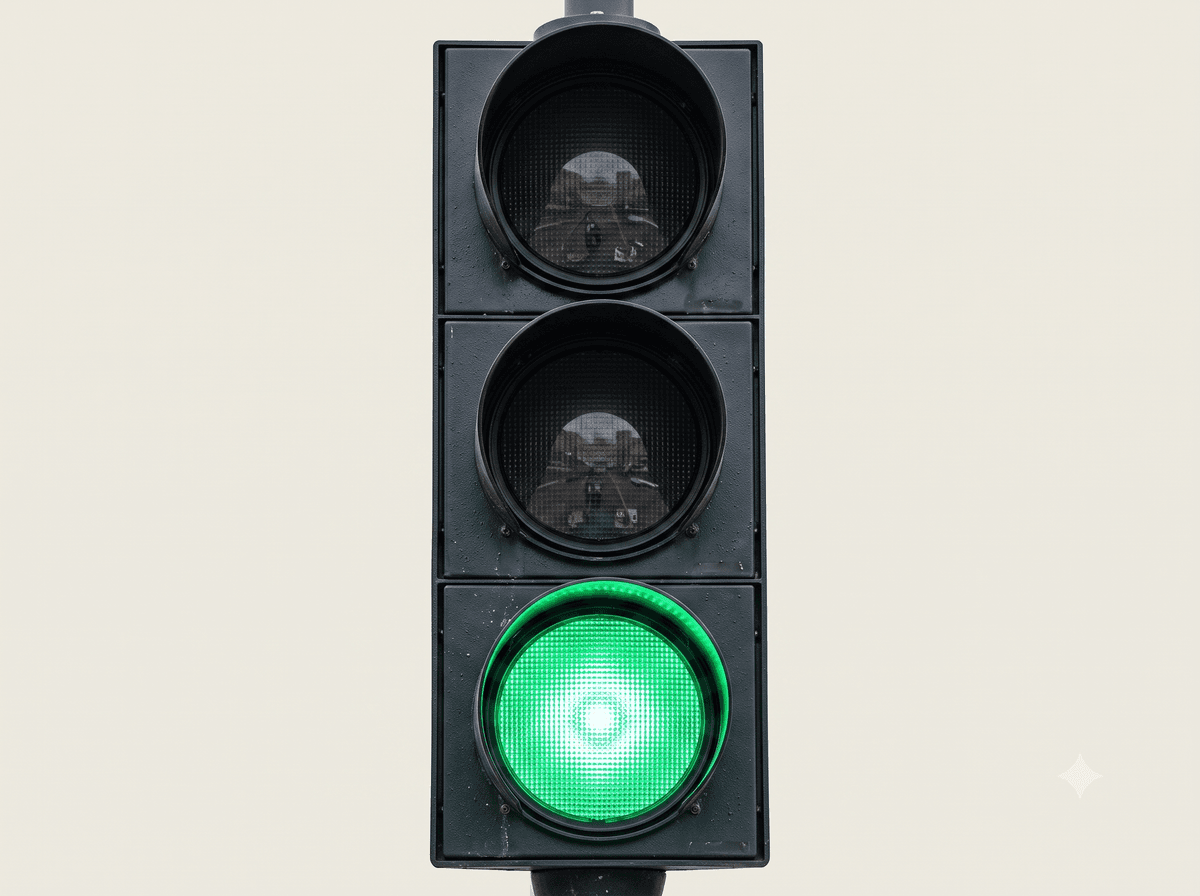

Green Light
Green Light
Proceed if the way is clear; give way to pedestrians still crossing.

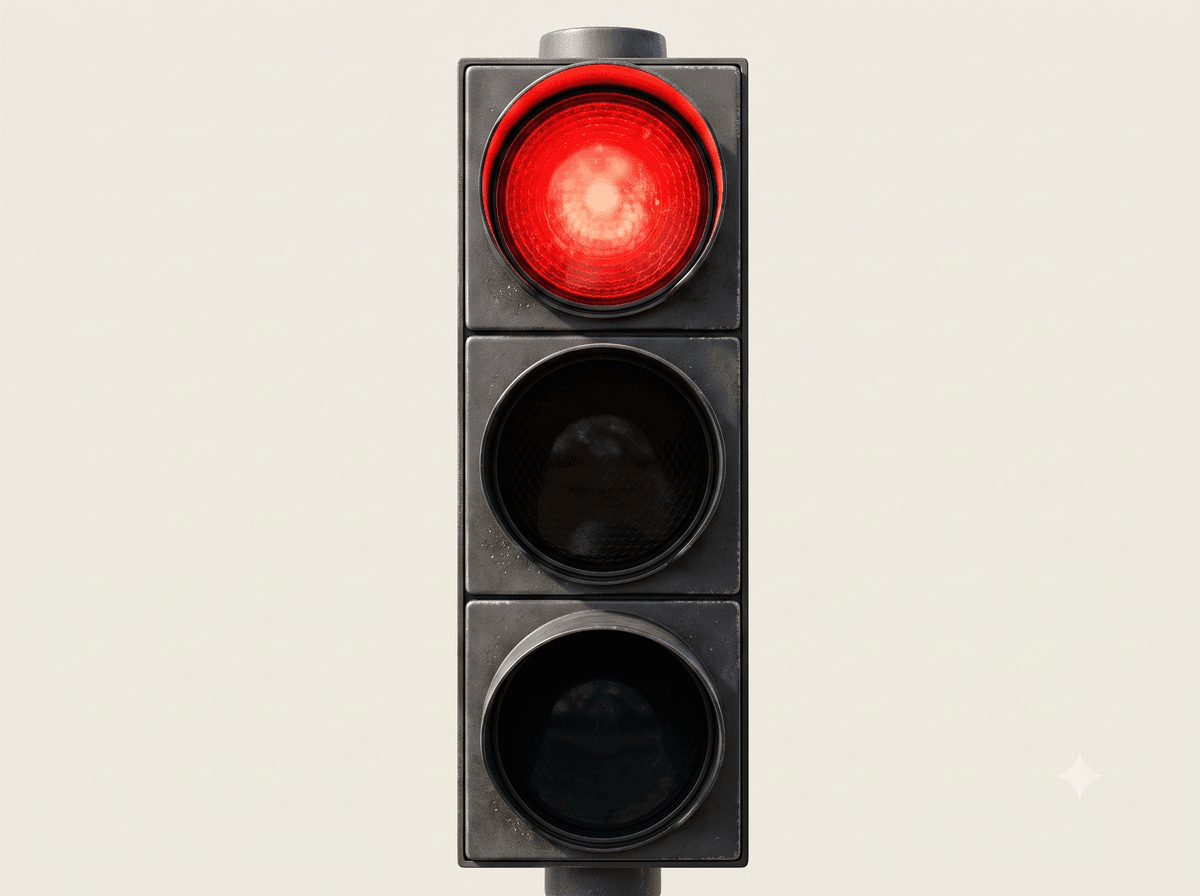

Red Light
Red Light
Stop behind the stop line and wait.

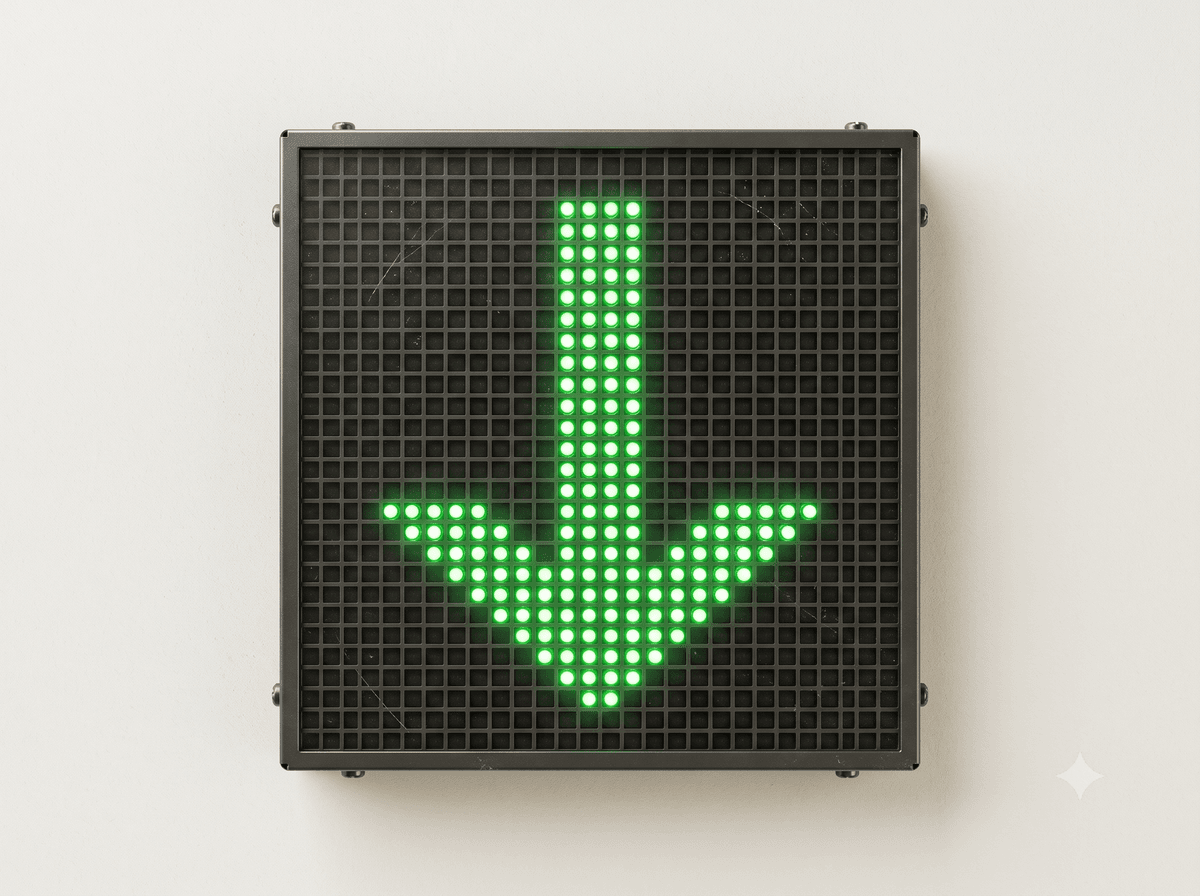

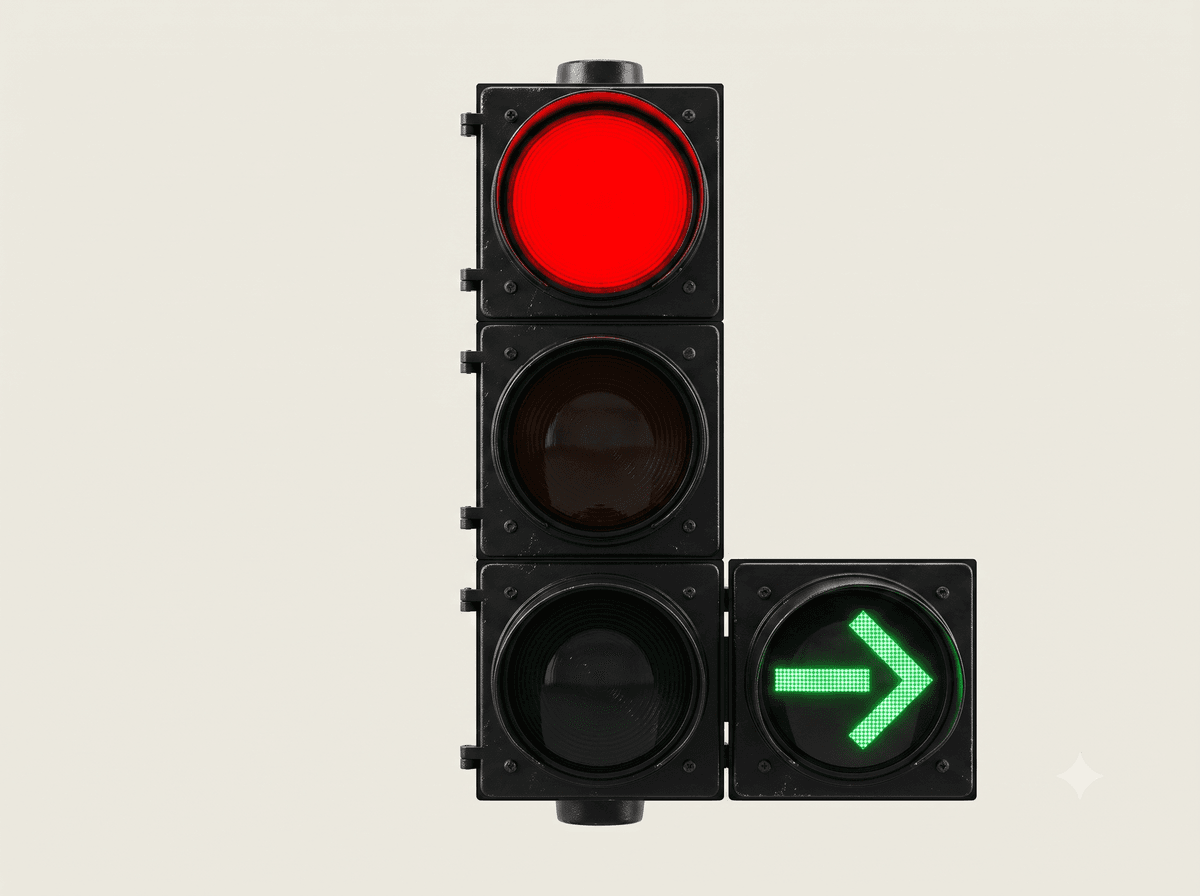

Green Arrow
Green Arrow
You may proceed in the direction of the arrow if clear.
Green Arrow (Filter)
Green Arrow (Filter)
Filtered green arrow allows turning while other traffic is stopped.

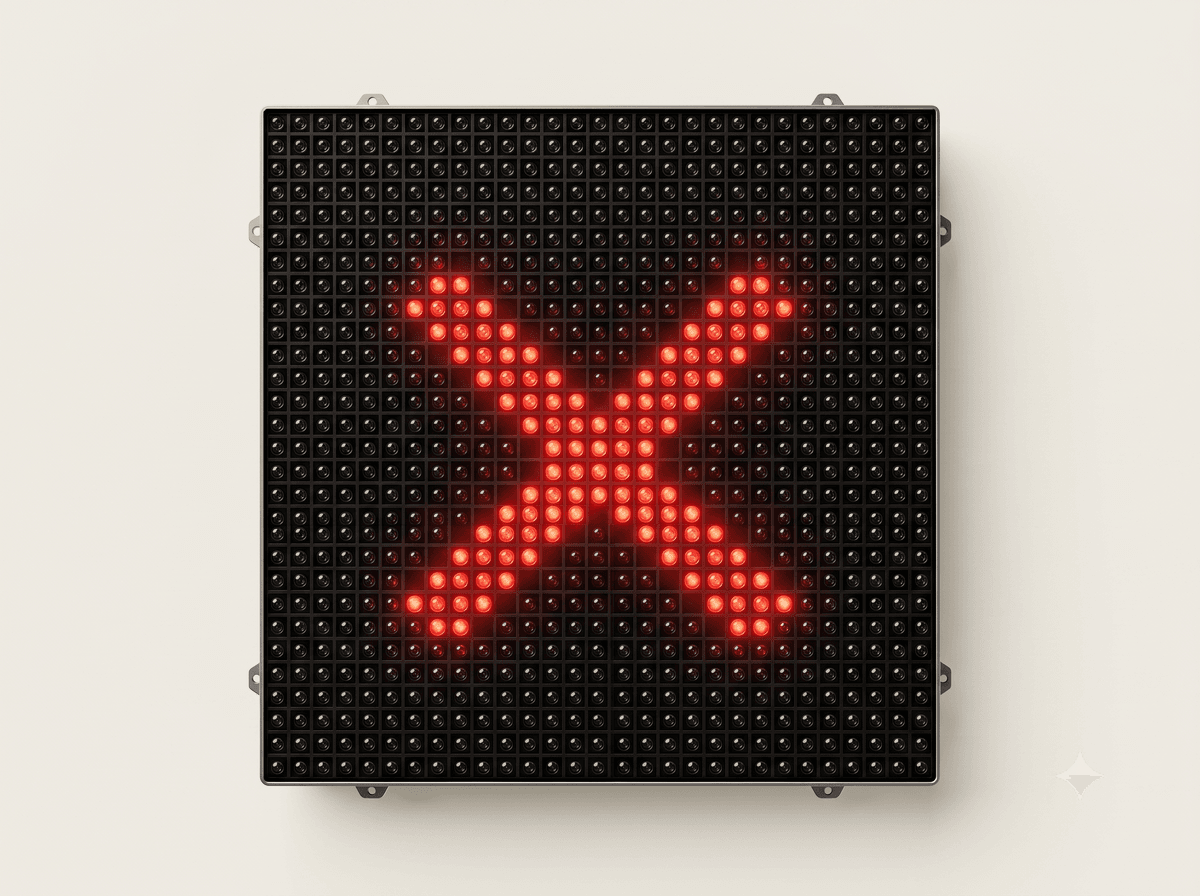

Red Cross (Lane Closed)
Red Cross (Lane Closed)
Lane closed; do not enter this lane.

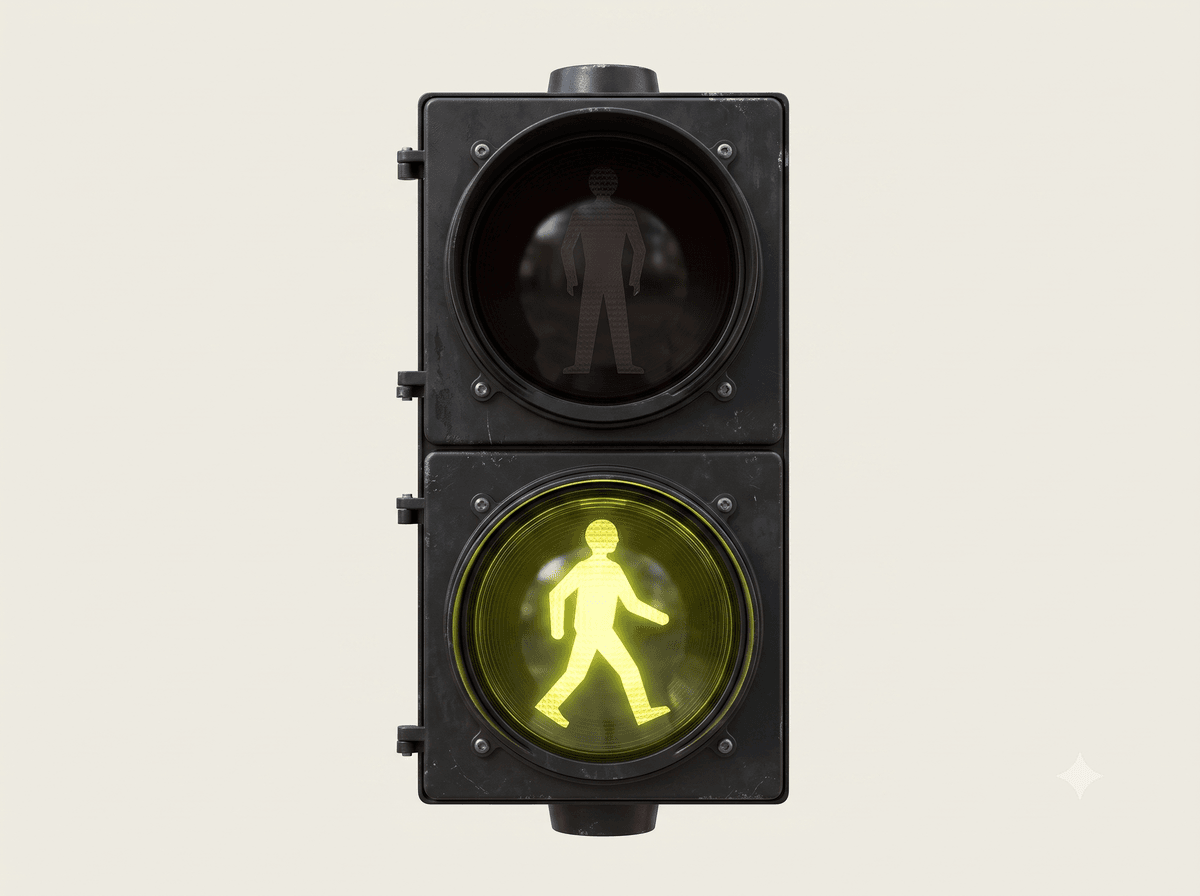

Pedestrian Green Man
Pedestrian Green Man
Pedestrians may cross; drivers must give way.

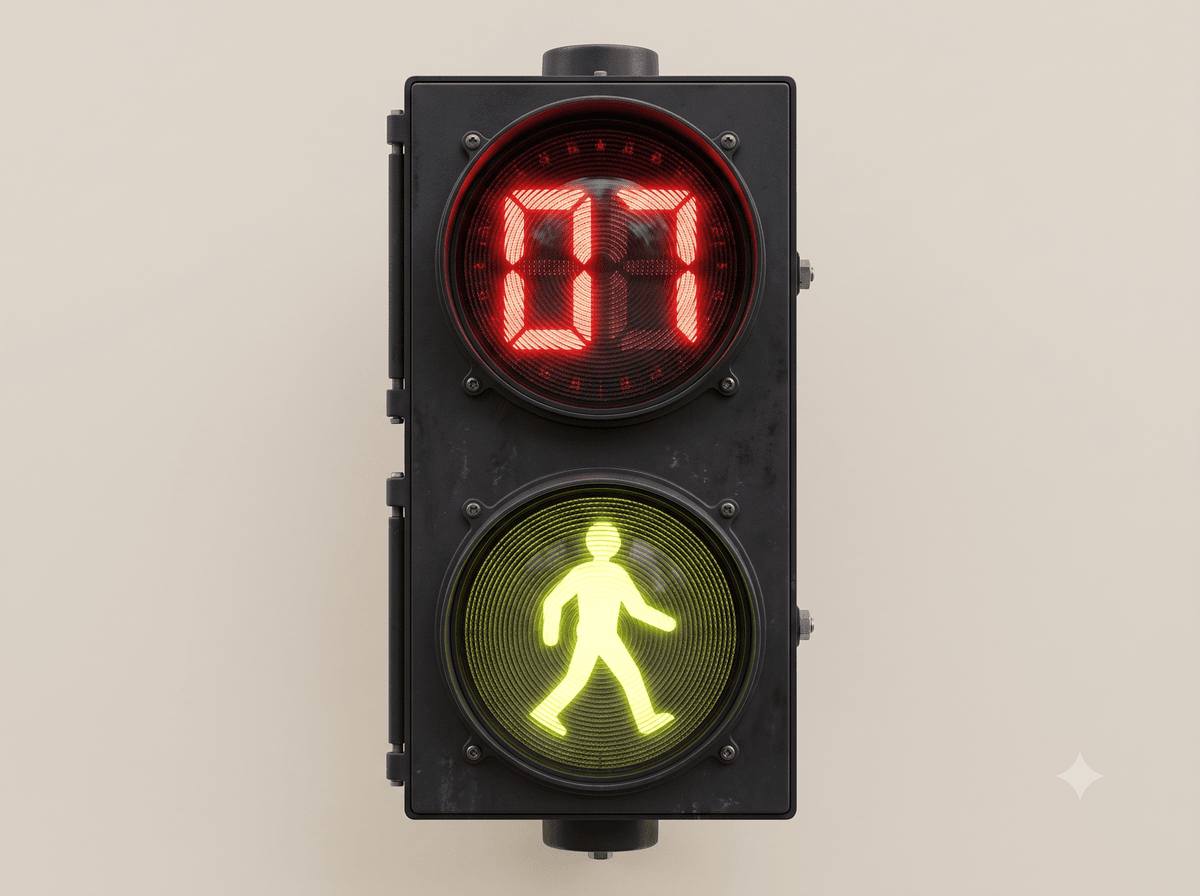

Countdown Timer
Countdown Timer
Shows seconds remaining; do not start crossing on low counts.

Police & Hand Signals

Police Traffic Control
Police Traffic Control
Obey the police officer's directions over traffic lights.
Police Directing Traffic
Police Directing Traffic
Follow the officer's hand signals at the junction.
Stop Signal (Hand Raised)
Stop Signal (Hand Raised)
Officer signals all traffic to stop; halt immediately.
Slow Down Signal
Slow Down Signal
Officer signals traffic to slow down.
Stop All Directions
Stop All Directions
All vehicles from every direction must stop.
🇯🇵

Japan Signs

規制標識 — Regulatory

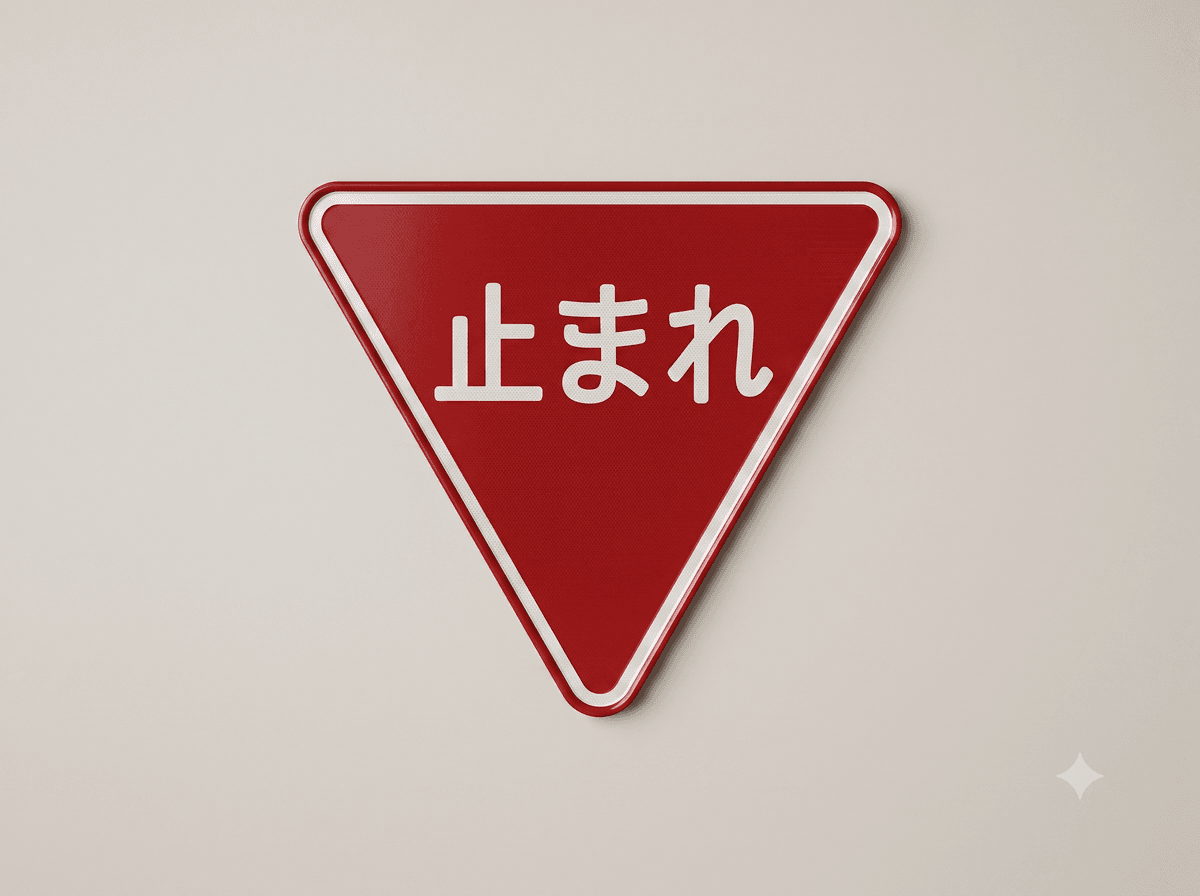

止まれ
止まれ
Stop
Come to a complete stop at the line. — 停止線の手前で一時停止。
進入禁止
進入禁止
No Entry
Vehicles may not enter this road. — この道路へは進入禁止。
最高速度
最高速度
Speed Limit
Do not exceed the posted speed. — 表示速度を超えてはいけない。
追い越し禁止
追い越し禁止
No Overtaking
Overtaking prohibited in this section. — この区間は追い越し禁止。
徐行
徐行
Proceed Slowly
Slow down and be prepared to stop at any moment. — いつでも止まれる速度で徐行。
一方通行
一方通行
One Way
Traffic flows in one direction only. — 一方向のみ通行可。

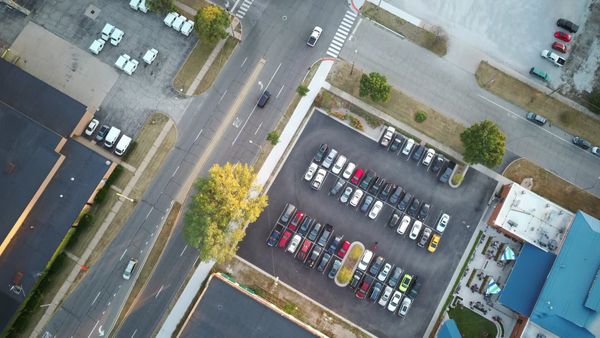

駐車禁止
駐車禁止
No Parking
Stopping to park is prohibited. — 駐車は禁止。

警戒標識 — Warning

横断歩道
横断歩道
Pedestrian Crossing
Yield to pedestrians crossing. — 横断歩道あり、歩行者優先。
スクールゾーン
スクールゾーン
School Zone
Slow down; children may be present. — 子供が多い区域、徐行。
警戒
警戒
Hazard Warning
Danger or unusual road conditions ahead. — 前方に危険箇所あり。
歩行者通行あり
歩行者通行あり
Pedestrians Present
Pedestrians may be using this road. — 歩行者の通行に注意。
